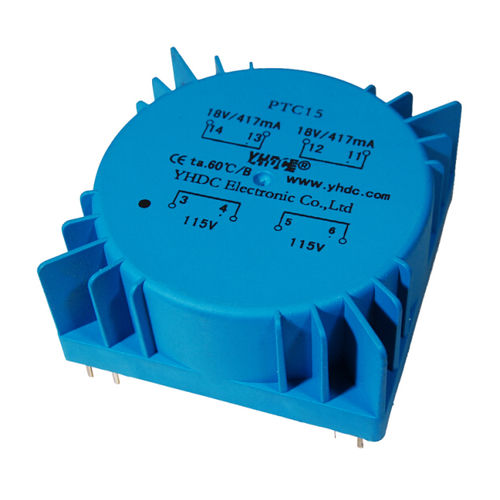

Electrical power supply transformer PTC15encapsulatedfor printed circuit boardstoroidal
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- encapsulated
- Mounting
- for printed circuit boards
- Other characteristics
- toroidal
- Primary voltage
110 V, 115 V, 120 V
- Secondary voltage
Max.: 27.2 V
Min.: 8.9 V
- Primary current
Max.: 1,071 mA
Min.: 341 mA
Description
Characteristics: Small magnetic flux leakage,low noise,hig effciency;
No-load current small; PCB welding ;
Suitable for senior acoustics,medical equipment,Military engineering,precision instruments
Adopt the impirt high quality circular iron core Epoxy encapsulated
Basic Index: Input:double 110V、115V、120V
Dielectric strength:P1/P2:600V AC
S1/S2:600V AC
P/S:4000V AC
Catalogs
YHDC TRANSFORMERS
54 Pages
