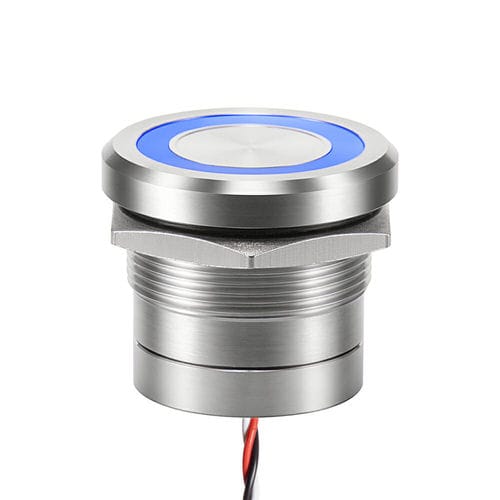

Capacitive switch CP25BRZFNNOMBC

touchsingle-polerobust

The new CP Series Capacitive switch technology senses the touch of a finger and creates an electrical charge to activate the switch. An auto-calibration function ensures the sensor adapts to changing external environments. LANGIR's capacitive switches are specially designed for durability and a low activation force. As sensitive as a touch screen, the capacitive switches are perfect for industrial applications where repetitive activation can cause operator fatigue. 25mm Capacitive switch Available with diameter 16, 19, 22 or 25 mm bushing, CP series sensory switches are extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 robustness and unlimited life are perfect for self-service applications. • Activated by the easy touch of a finger, the capacitive switches extremely to use • Adjustable sensitivity sensor adapts to external environments • Easy-to-locate or on/off indication is possible through independent or output image LED functionality • Easy to clean because the switch is impervious to dust and dirt, and resistant to harsh chemicals and contaminants • 50 million cycles and no moving mechanical parts make LANGIR’s CP Switches robust and durable • Available in momentary or latching and with or without illumination Main Features • Autocalibration • Momentary or latching • Independent or output image LED functionality • Adjustable sensitivity • 50 million cycles • No moving mechanical parts to wear out • Bushing diameter 16, 19 or 22 mm • Impervious to dust and dirt • Resistant to harsh chemicals and contaminants • Sealed to IP68 and IP69K • Impact resistance : IK10
