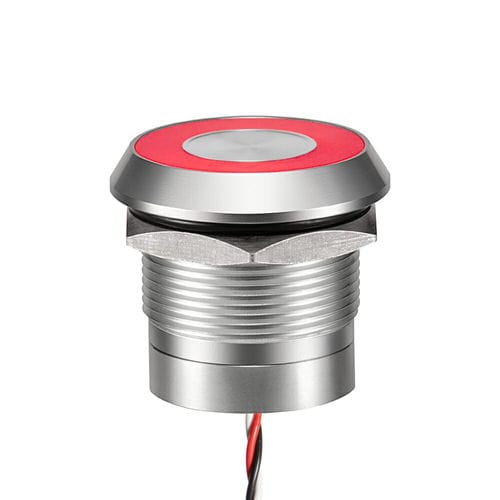

Capacitive switch CP22BRYFNNOMBC
single-polerobustIK 10

capacitive switch
capacitive switch
capacitive switch
Add to favorites
Compare this product


Characteristics

Type
capacitive
Number of poles
single-pole
Protection level
robust, IK 10, IP69K, IP68
Mounting
built-in
Other characteristics
on/off, LED-illuminated, industrial, mechanical, activation, technology, latching, momentary
Voltage

Min.: 5 V

Max.: 24 V

Diameter / length

22 mm
(0.9 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 65 °C
(149 °F)

Description

The new CP Series Capacitive switch technology senses the touch of a finger and creates an electrical charge to activate the switch. An auto-calibration function ensures the sensor adapts to changing external environments. LANGIR's capacitive switches are specially designed for durability and a low activation force. As sensitive as a touch screen, the capacitive switches are perfect for industrial applications where repetitive activation can cause operator fatigue. 22mm Capacitive Switch Available with diameter 16, 19, 22 or 25 mm bushing, CP series sensory switches are extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 robustness and unlimited life are perfect for self-service applications. • Activated by the easy touch of a finger, the capacitive switches extremely to use • Adjustable sensitivity sensor adapts to external environments • Easy-to-locate or on/off indication is possible through independent or output image LED functionality • Easy to clean because the switch is impervious to dust and dirt, and resistant to harsh chemicals and contaminants • 50 million cycles and no moving mechanical parts make LANGIR’s CP Switches robust and durable • Available in momentary or latching and with or without illumination Key Feature • Operating force : 0N • LED state for output image option :1 LED : the LED is ON when the output is closed.2 LEDs : first colour is ON when the output is open. Second colour is ON when the output is closed. • Output type : NPN / PNP • Life expectancy : 50 million cycles • Adjustable sensitivity : Connection to ground by means of the yellow wire increases sensitivity (momentary version only)
