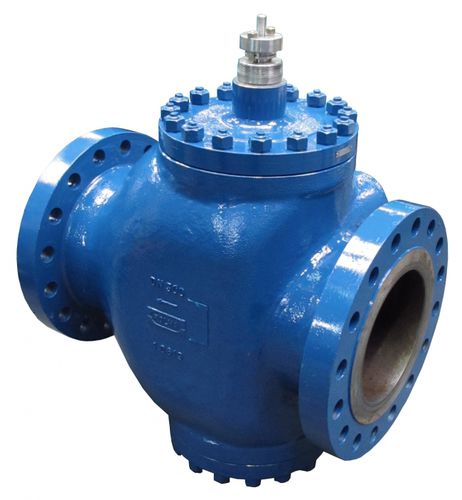

Globe valve Z10

pneumaticcontrolfor gas

Valves type Z10 (previous name: 10000 DG) with a pressure-balanced plug are used as final executive elements in automatic and remote control systems. They are used to regulate the flow rate of liquids and gases in the chemical industry, metallurgy, shipbuilding etc. They can be supplied without drives or with drives. The standard drives are diaphragm-spring pneumatic actuators manufactured by Zakładów Automatyki POLNA. S.A. We can adjust the control valve to match your individual needs. Body materials - carbon cast steel GP 240 GH (1.0619), WCB carbon cast steel for low temperatures G20Mn5 (1.6220) acid-resistant cast steel GX5CrNiMo 19-11-2 (1.4408), CF8M. Use of other materials is possible, but must be agreed upon. Non-catalogue products - We can adjust these parameters to your individual needs. In such cases, please contact our technical support specialist. In the menu: “Non-catalogue version control valves” and “New products” we present the following examples. reduction in aggressive and toxic media emissions to the environment through application of bonnet packings meeting the requirements of TA – LUFT high durability and reliability due to application of top-class materials and surface improvement processes (burnishing, stelliting, heat treatment, CrN coatings) possibility of matching with P/R multi-spring actuators (basic option), P1/R1. Full reversibility of actuator operation and changing the spring range with no extra parts optional fitting of pneumatic actuators with manual drive possibility of performing diagnostics of “valve-actuator” system, due to application of smart electro-pneumatic positioners
