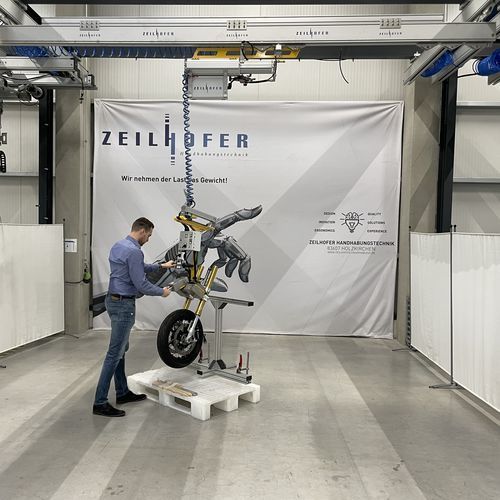

Electric manipulator ZH70with hoistfor mechanical componentstransport
Add to favorites
Compare this product
Characteristics
- Drive type
- electric
- Gripping device
- with hoist
- Applications
- positioning, for mechanical components, for materials handling, parts, transport, industrial, for workstations
- Configuration
- overhead rail-mounted
- Other characteristics
- ergonomic, balanced, modular, with cable lift, track, for small spaces
- Domain
- industrial, for the packaging industry, for the food industry, for the automotive industry, for the metallurgical industry, for logistics, for electronics
- Carrying capacity
70 kg
(154.3 lb)- Working radius
4,000 mm
(157.5 in)- Rotation
360 °
Description
The ZH70 rope manipulator from Zeilhofer Handhabungstechnik is a lightweight aluminium manipulator for the rail-mounted, movable handling of loads up to 70 kg. Compact design, low weight and precise handling make it fully compatible with rail systems. It offers wide freedom of movement in the X and Y directions with controlled brakes and can be individually equipped.
It is driven electro-pneumatically or electrically. Manufactured at our site in Holzkirchen, Germany, certified to ISO 9001 and TISAX Level 2.
WHAT SETS THE ZH70 ROPE MANIPULATOR APART
01 MOVABLE ON A RAIL SYSTEM
Movable in the X and Y directions on all common rail systems. Optimal use of space over long distances, the entire hall area becomes usable.
02 LIGHT AND COMPACT
Low weight thanks to aluminium construction and compact dimensions. Ideal for light loads up to 70 kg that are moved quickly and frequently.
03 RELIABLE LIFT THROUGH DOUBLE-ROPE TECHNOLOGY
The double-rope technology ensures a safe, even lift and ergonomic, repeatable work.
04 FREE FLOOR
Operation on the rail system keeps the floor free for people and material flow. Flexible mounting options on the steel structure.
05 PRECISE AND SAFE
Slewing bearing with 360 degree continuous rotation, rotation stops to limit the working range and brakes on the individual rotary axes.
06 FLEXIBLE CONTROL
Either electro-pneumatic or electric control, adapted to your infrastructure and process requirements.
It is driven electro-pneumatically or electrically. Manufactured at our site in Holzkirchen, Germany, certified to ISO 9001 and TISAX Level 2.
WHAT SETS THE ZH70 ROPE MANIPULATOR APART
01 MOVABLE ON A RAIL SYSTEM
Movable in the X and Y directions on all common rail systems. Optimal use of space over long distances, the entire hall area becomes usable.
02 LIGHT AND COMPACT
Low weight thanks to aluminium construction and compact dimensions. Ideal for light loads up to 70 kg that are moved quickly and frequently.
03 RELIABLE LIFT THROUGH DOUBLE-ROPE TECHNOLOGY
The double-rope technology ensures a safe, even lift and ergonomic, repeatable work.
04 FREE FLOOR
Operation on the rail system keeps the floor free for people and material flow. Flexible mounting options on the steel structure.
05 PRECISE AND SAFE
Slewing bearing with 360 degree continuous rotation, rotation stops to limit the working range and brakes on the individual rotary axes.
06 FLEXIBLE CONTROL
Either electro-pneumatic or electric control, adapted to your infrastructure and process requirements.
