Manipulator with cable lift ACER

pneumatichandlingindustrial

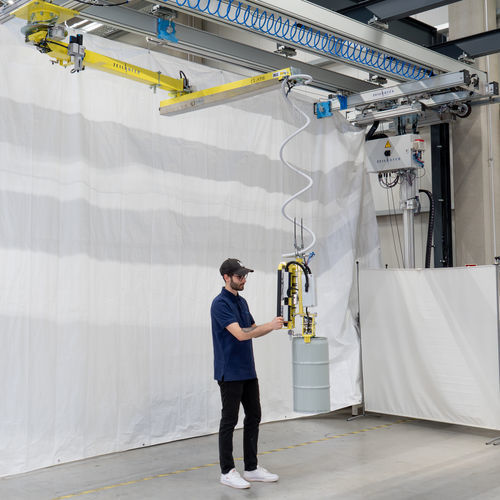

The ACER rope manipulator from Zeilhofer Handhabungstechnik in the stationary ceiling version is bolted directly to the hall ceiling or a load-bearing steel structure and handles loads up to 150 kg. Maximum stability with a free floor for people and material flow, ideal for permanent installations in industrial environments. It is driven pneumatically or electro-pneumatically.

The reliable lift is provided by double-rope technology for ergonomic, repeatable work. Manufactured at our site in Holzkirchen, Germany, certified to ISO 9001 and TISAX Level 2.

WHAT SETS THE CEILING-MOUNTED ACER ROPE MANIPULATOR APART

01 SPACE-SAVING DESIGN
Ceiling mounting keeps the entire floor area free for people and material flow. The most compact solution for permanent workstations.

02 ROBUST AND LOW-MAINTENANCE
Bolted directly to ceiling or steel structure, a robust and low-maintenance design for continuous industrial use.

03 RELIABLE LIFT THROUGH DOUBLE-ROPE TECHNOLOGY
The double-rope technology ensures a safe, even lift and ergonomic, repeatable work.

04 LARGE WORKING RADIUS UP TO 4,000 MM
The lightweight aluminium lifting cylinder and the slewing bearing with 360 degree continuous rotation open up a working radius of up to 4,000 mm with loads up to 150 kg.

05 SAFE AND PRECISE
Rotation stops limit the working range, brakes on the individual rotary axes secure every position, and a pressure accumulator bridges power failures.

06 FLEXIBLE CONTROL
Either pneumatic or electro-pneumatic control, with flexible mounting options on the steel structure.
