Pneumatic manipulator ACER

with hoistfor mechanical componentstransport

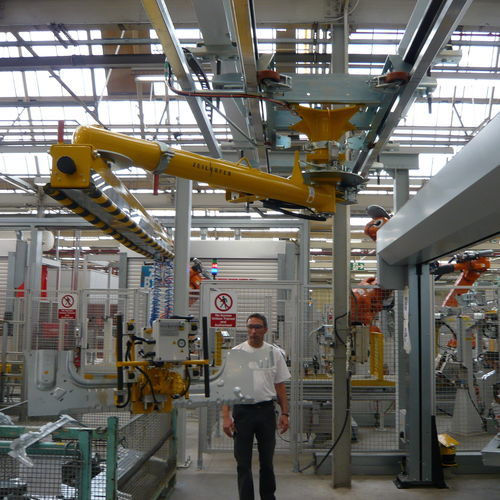

The ACER rope manipulator from Zeilhofer Handhabungstechnik in the movable rail version is integrated into a ceiling-guided rail system, optionally with a bridge construction for X and Y mobility, and handles loads up to 150 kg. Precise, smooth movement across the entire hall width, maximum flexibility for variable workstations. It is driven pneumatically or electro-pneumatically.

The reliable lift is provided by double-rope technology for ergonomic, repeatable work. Manufactured at our site in Holzkirchen, Germany, certified to ISO 9001 and TISAX Level 2.

WHAT SETS THE RAIL-MOUNTED, MOVABLE ACER ROPE MANIPULATOR APART

01 LARGEST WORKING AREA
Movable in the X and Y directions on all common rail systems. Optimal use of space over long distances, the entire hall width becomes usable.

02 MAXIMUM FLEXIBILITY
Integration into a ceiling-guided rail system with an optional bridge construction makes every point of the hall reachable. Ideal for variable workstations.

03 RELIABLE LIFT THROUGH DOUBLE-ROPE TECHNOLOGY
The double-rope technology ensures a safe, even lift and ergonomic, repeatable work.

04 FREE FLOOR
Operation on the ceiling-guided rail system keeps the floor free for people and material flow. Flexible mounting options on the steel structure.

05 PRECISE AND SAFE
Slewing bearing with 360 degree continuous rotation, rotation stops to limit the working range and brakes on the individual rotary axes.

06 FLEXIBLE CONTROL
Either pneumatic or electro-pneumatic control, adapted to your infrastructure and process requirements.
