Pneumatic manipulator arm

with gripping toolfor mechanical componentstransport

Overview
The articulated arm manipulator from Zeilhofer Handling Technology is a pendulum-free lifting aid designed for controlled handling and millimetre-precise positioning of loads up to 800 kg with a working radius up to 4,500 mm. Available in four mounting variants (floor stationary, floor mobile, ceiling stationary, ceiling movable). Each unit is supplied as a project-specific complete solution including end-of-arm tooling, control system integration and after-sales support. Manufactured in Holzkirchen, Bavaria.

Key capabilities

• Pendulum-free rigid load guidance for accurate positioning
• Load capacity up to 800 kg (usable capacity depends on boom length and leverage)
• Working radius up to 4,500 mm (depending on selected boom length)
• Drive and control options: pneumatic (standard), electro-pneumatic, electric; options for balancing, safety and automatic control
• Custom end-of-arm tooling: grippers, suction cups, magnets, hooks, screwdriver units and bespoke fixtures

Assembly options — Four variants

• 01 Stationary on the floor: Fixed workstation anchored to the factory floor for maximum stability and large operating radius; optionally relocatable by forklift or pallet truck.
• 02 Mobile on the floor: Mounted on a stable base plate; the unit is transportable by pallet truck, electric pallet jack or forklift for flexible use across production areas.
• 03 Stationary ceiling & steel construction: Anchored to hall ceiling or steel structure to keep the floor clear and save space; ideal where floor space must remain available for vehicles and personnel.
• 04 Movable on the ceiling & steel construction: Mounted on a rail system for X–Y movement across the hall, providing maximum flexibility for changing workstations.

Common advantages / features

• Rigid, pendulum-free load guidance enabling millimetre positioning
• Large working radius options up to 4,500 mm
• Load capacity up to 800 kg (design-dependent)
• Smooth-running aluminium lifting cylinder
• Rotary bearing with 360° continuous rotary feedthrough
• Configurable rotation stops and working-area limits
• Brakes on individual rotation axes
• Multiple control options (pneumatic, electro-pneumatic, electric)

Complete system & end-of-arm tooling
Zeilhofer supplies the manipulator as a complete, CE-compliant solution including planning, control systems and project-specific end-of-arm tooling. Typical tooling examples include:

• Grippers
• Suction cups
• Magnets
• Hooks
• Screwdriver assemblies
• Custom fixtures developed per component

Applications

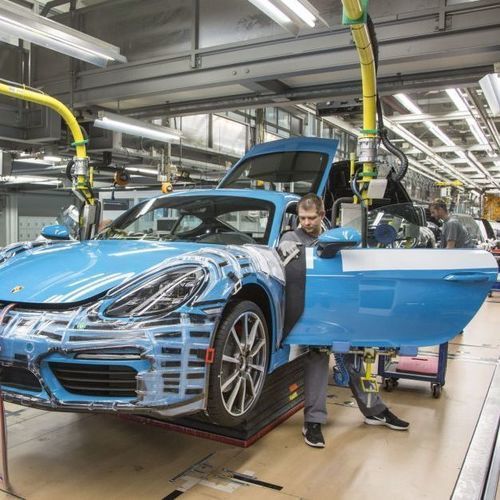

Suitable for automotive body assembly and final assembly, foundries, glass and window production, logistics, mechanical engineering and other sectors requiring precise handling of heavy or awkward components.

Manufacturing & services
Manufactured at Zeilhofer's Holzkirchen site in Bavaria. Zeilhofer provides project planning, control integration, fixture development and after-sales service as part of the delivery.

Technical specifications

• Max. load capacity: up to 800 kg (design dependent on boom length)
• Working radius: up to 4,500 mm (depending on boom length)
• Mounting variants: floor-stationary, floor-mobile (base plate), ceiling-stationary (steel construction), ceiling-movable (rail system)
• Lifting cylinder: smooth-running aluminium cylinder
• Rotation: 360° continuous rotary feedthrough
• Rotation limits: configurable rotation stops/working-area limitations
• Axis control: brakes on individual axes
• Drive / control options: pneumatic (standard), electro-pneumatic, electric; options for balancing, safety and automatic control
• End-of-arm tooling: grippers, suction cups, magnets, hooks, screwdrivers, custom solutions (CE-compliant)
• Manufacturing location: Holzkirchen, Bavaria
