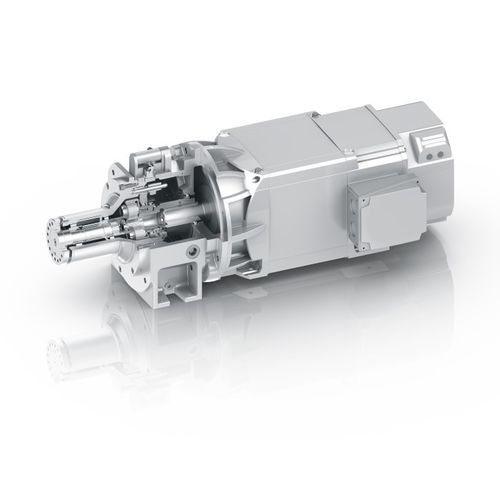

Planetary gear reducer Duoplancoaxialhollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm
- Mounting
- shaft-mounted
- Number of stages
- two-stage
- Performance
- high-precision, high-efficiency, high-torque, low-backlash, maintenance-free
- Applications
- machine, for machine tools, for machines, for lathes
- Other characteristics
- with motor adapter, universal, vertical, mounted, manual, horizontal
Description
Overview
The ZF Duoplan two-speed manual gearbox is designed for machine tool main-spindle drives, test benches and other high-torque applications. Variable installation positions allow use in turning machines (horizontal B3/B5) and machining centres (vertical V1/V3). The gearbox supports direct spindle mounting (Inline & TSC) for flexible integration.
Key Facts
Technical Information
Operating instructions and series overview for:
Benefits
Variants / Gallery
Technical specifications
The ZF Duoplan two-speed manual gearbox is designed for machine tool main-spindle drives, test benches and other high-torque applications. Variable installation positions allow use in turning machines (horizontal B3/B5) and machining centres (vertical V1/V3). The gearbox supports direct spindle mounting (Inline & TSC) for flexible integration.
Key Facts
- Easy assembly: compatible with major motor manufacturers and versions
- Wide application range: universal and flexible design
- Versatility: direct mounting to spindle (Inline & TSC) for multiple use cases
Technical Information
Operating instructions and series overview for:
- 2K 120 / 2K 121
- 2K 250 / 2K 300
- 2K 450 / 2K 600
- 2K 800 / 2K 1000
- 2K 2100
Benefits
- Constant cutting power across a wide speed range
- Speeds can be multiplied by adding another ratio
- High accuracy from ground, high-precision gearing
- Low circumferential backlash
- Very high efficiency
- Low maintenance requirements
- Extremely long service life
- Special solutions available on request
Variants / Gallery
- ZF Duoplan 2K TSC (Through-Spindle-Cooling)
- ZF Duoplan 2K 800
- ZF Duoplan 2K 450-600
- ZF Duoplan 2K 250 Standard
- ZF Duoplan 2K 120 inline
- ZF Duoplan with clamping hub (2K 120 / 250 / 300)
Technical specifications
- Product type: Two-speed manual gearbox for machine tools
- Main applications: Machine tool main-spindle drives, test benches and other high-torque applications
- Installation positions: Variable; suitable for turning machines (horizontal B3/B5) and machining centres (vertical V1/V3)
- Mounting: Direct mounting to spindle (Inline & TSC)
- Available sizes/series: 2K 120/121, 2K 250/300, 2K 450/600, 2K 800/1000, 2K 2100
- Performance features: Ground high-precision gearing, low circumferential backlash, very high efficiency, constant cutting power across a wide speed range
- Maintenance & lifespan: Low maintenance; extremely long service life
- Customization: Special solutions available on request
