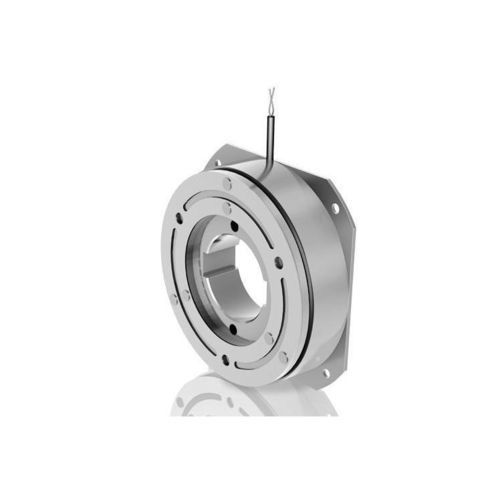

Disc combined clutch-brake unit

electromagnetic

Overview
For versatile industrial automation. Electromagnetically operated single-disk clutches and brakes are designed to automate mechanical processes — from drives with uneven loads to precise control of high-frequency switching cycles.

Key Facts

• Resistant to contamination — suitable for industrial environments
• Maintenance-free — brushless operation
• Space-optimized — compact external dimensions and simple construction

Gallery
Images and media illustrate the ZF Single-Disc product, including a labeled sectional view for component identification.

Technical Information
Operating instructions for the ZF Single-Disc are available in the product downloads and contain installation and correct-use guidance.

Downloads

• Catalogue — English
• Catalogue — Simplified Chinese

Technical specifications

• Type: Electromagnetically operated single-disk clutches and brakes
• Applications: Automation of mechanical processes; drive circuits with uneven loads; precise control of working cycles with high switching frequency
• Advantages: Resistant to contamination; maintenance-free; space-optimized
• Operation: Brushless
• Design: Simple construction with small external dimensions
