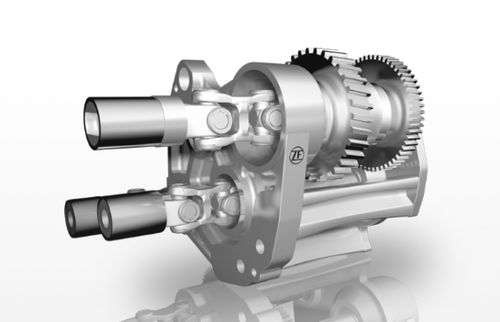

Mechanical transmission

Overview
Customer-specific transmission systems from ZF developed and manufactured for industrial applications such as robotics, textile machinery and printing machines. Solutions are tailored to customer requirements and installation constraints.

Key advantages

• Lowest possible circumferential backlash for precise positioning
• High efficiency and favorable power-to-weight ratio
• Low running noise suitable for sensitive applications
• Customized to the system demand and installation space
• Close couplings available, including fixed-point coupling options
• Multiple gearbox concepts: worm, cam, spur and planetary gears
• Integrated transmission and clutch system options
• High availability and patented special solutions

Technical features

• Modular design to adapt to torque and speed requirements
• Compact dimensions for constrained installation spaces
• Selectable gear types and coupling configurations
• Options for integration of clutches, brakes and driveline components

Applications

• Industrial robotics and automation
• Textile machinery
• Printing and converting machines
• Other machinery and plant applications requiring tailored driveline solutions

Ordering & support

• Configured to customer specifications with engineering consultation
• Short lead times and high availability
• Technical documentation and integration support from ZF experts
