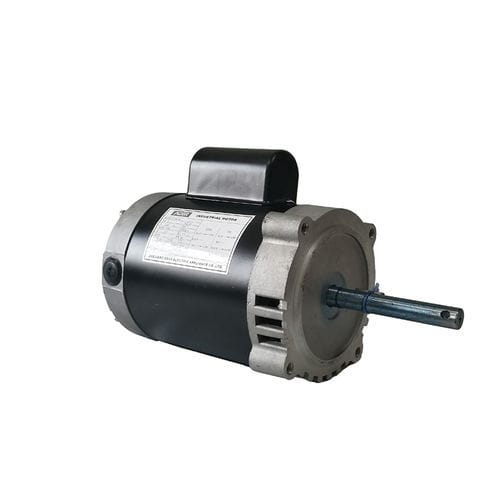

Induction motor Y140-4single-phasecapacitor4-pole
Add to favorites
Compare this product
Characteristics
- Type
- induction, single-phase
- Configuration
- capacitor
- Number of poles
- 4-pole
- Applications
- for pump
- Rotational speed
1,800 rpm
(11,309.7336 rad.min-1)
Description
1/2 hp jet pump motor, Capacitor-start, single phase AC induction motor;
Metal housing and Aluminium front /end cover with fan cooling way, perfect temperature-raising control and lowe noise.
● Model: Y140-4
● Type: AC induction motor / AC Asynchronous motor
● Phase: Single Phase
● Housing Material: SPCC
● Surface Treatment: Perfect Powder Spray
● Voltage: 120V
● Frequency: 60hz
● Power: 1/2 hp
● Speed: 1800 RPM
● Poles: 4 poles
● SF: 1
● Frame: 56c
● Rotation: CW/CCW
● Bearing: Ball
● Protection Feature: ODP
● Insulation Class: Class F
● Overload Protection: Yes
● Thermal Protection: Yes
● Work condition: SI
