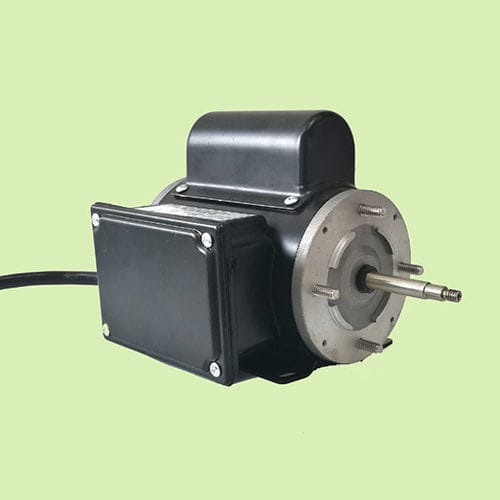

Induction motor CIT091-1025
single-phase380 V2-pole

Induction motor - CIT091-1025 - Zhejiang Aoer Electrical Appliance Company - single-phase / 380 V / 2-pole
Induction motor - CIT091-1025 - Zhejiang Aoer Electrical Appliance Company - single-phase / 380 V / 2-pole
Induction motor - CIT091-1025 - Zhejiang Aoer Electrical Appliance Company - single-phase / 380 V / 2-pole - image - 2
Induction motor - CIT091-1025 - Zhejiang Aoer Electrical Appliance Company - single-phase / 380 V / 2-pole - image - 3
Add to favorites
Compare this product

Characteristics

Type
induction, single-phase
Voltage
380 V
Number of poles
2-pole
Applications
for water pumps
Other characteristics
low-noise, low-vibration
Rotational speed

Min.: 2,850 rpm
(17,907.0781 rad.min-1)

Max.: 3,450 rpm
(21,676.9893 rad.min-1)

Description

The AC Induction motor is designed for water pump, with lower noise,lower vibration and overload protection auto feature; Metal housing and Aluminium front /end cover with fan cooling way. Nema 56C standard, easy to install. ● Model: CIT091-1025 ● Type: AC induction motor / AC Asynchronous motor ● Phase: Single Phase ● Housing Material: SPCC ● Surface Treatment: Perfect Powder Spray ● Voltager: 115V / 230V ● Frequency: 50/60hz ● Power: 1/6 hp ● Speed: 2850~3450 RPM ● Poles: 2 poles ● FLA: 1.97/0.89A ● Bearing: Ball ● Ratation: reversible ● Protection class IP: TENV ● Insulation Class: Class B ● Work condition: SI
