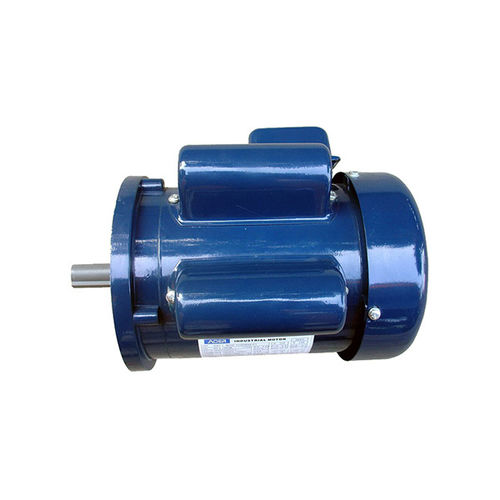

Single-phase motor YCN5544induction230 V4-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- induction
- Voltage
- 230 V
- Number of poles
- 4-pole
- Applications
- for pumps, for air compressors, for conveyors
- Rotational speed
1,725 rpm
(10,838.49 rad.min-1)
Description
The Single phase ac motor is designed for use in for use in stationary air compressors, pumps, conveyers,
Nema 56C standard, easy to install.
● Model: YCN5544
● Type: AC induction motor / AC Asynchronous motor
● Phase: Single Phase
● Housing Material: SPCC
● Surface Treatment: PAINT
● Voltager: 115V / 230V
● Frequency: 50/60hz
● Power: 3/4 hp
● Speed: 1725 RPM
● Poles: 4 poles
● FLA: 9.4/4.7
● SFA: 10.6/5.3
● SF: 1.15
● Bearing: Ball
● Frame: 56C
● Insulation Class: Class F
● Enclosed Protect Feature： ODP
● Work condition: SI
● Cooler style：Fan Cooler
