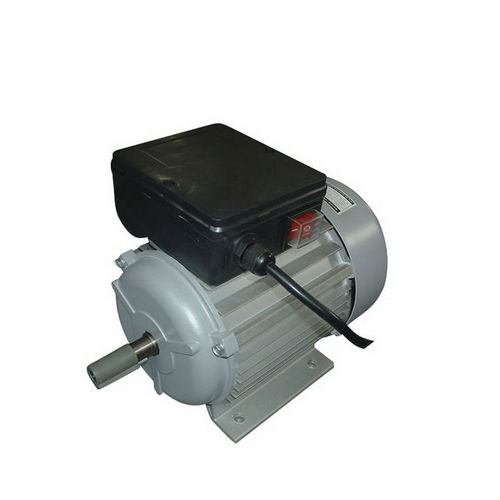

Induction motor YY8024single-phasecapacitor4-pole
Add to favorites
Compare this product
Characteristics
- Type
- induction, single-phase
- Configuration
- capacitor
- Number of poles
- 4-pole
- Applications
- for pump, for conveyors
- Other characteristics
- low-noise, low-vibration
- Power
550 W
(0.75 hp)- Rotational speed
1,725 rpm
(10,838.4947 rad.min-1)
Description
The Capacitor Run AC Electric Motor is designed for general purpose electric motor, It can be use in pumps, conveyers,mixer or other usage;
The product feature is lower noise,lower vibration and overload protection auto.
Housing is optional from standing and horizontal;
● Model: YY8024
● Type: AC induction motor / AC Asynchronous motor
● Phase: Single Phase
● Housing Material: ALUMINIUM
● Voltager: 120V
● Frequency: 60hz
● Power: 3/4 hp (550W)
● Speed: 1725 RPM
● Poles: 4 poles
● Current: 6.2a
● Capacitance: 60uf/450V
● Bearing: Ball
● Insulation Class: Class B
● Enclosed Protect Feature： ODP
● Protection class IP：IP20
● Work condition: SI
● Cooler style：Fan Cooler
