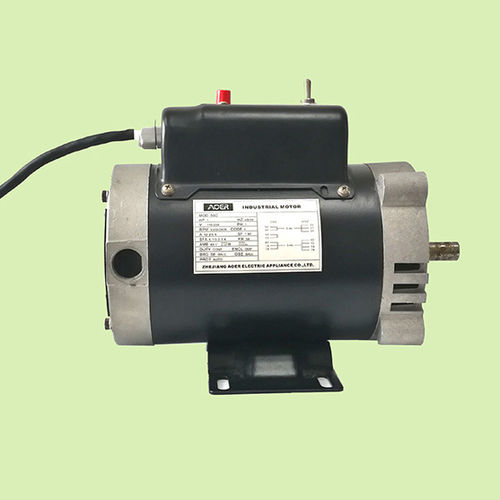

Single-phase motor mod 56cinduction230 Valuminum
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- induction
- Voltage
- 230 V
- Configuration
- aluminum
- Number of poles
- 2-pole
- Applications
- for water pumps
- Other characteristics
- low-noise, low-vibration
- Rotational speed
Max.: 3,350 rpm
(21,048.67 rad.min-1)Min.: 2,820 rpm
(17,718.58 rad.min-1)
Description
The AC Electric water pump motor is designed with lower noise,lower vibration and overload protection auto.
Metal housing and Aluminium front /end cover with fan cooling way.
Nema 56 standard, easy to install.
● Model: mod 56c
● Type: AC induction motor / AC Asynchronous motor
● Phase: Single Phase
● Housing Material: SPCC
● Surface Treatment: Perfect Powder Spray
● Voltager: 115V / 230V
● Frequency: 50/60hz
● Power: 1 hp
● Speed: 3350~2820 RPM
● Poles: 2 poles
● Current: 12.2/5.9A
● SFA: 6.7/3.2~3.4
● SF: 1.0
● Bearing: Ball
● Frame: 56
● Insulation Class: Class B
● Work condition: SI
● Weight：3.55 kgs
