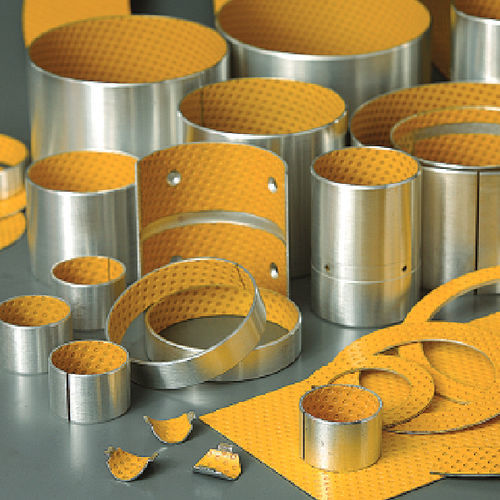

Cylindrical plain bearing CSB-2 series

carbon steelsintered bronzePOM

1. POM thickness 0.30~0.50mm, provides good wear resistance. This bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing. 2. Sintered bronze thickness 0.20~0.35mm, provides strong mechanical bond and excellent thermal conductivity. 3. Low-carbon steel, provides mechanical strength and thermal conductivity. Features It is suitable for boundary lubricating applications. It is recommended to lubricate the components with grease before assembling. The oil indents can hold the lubricant with optimized matrix. Lubricating during the operation helps to prolong the bearing duration. The low friction coefficient, good wear resistance and reliable loading capacity of the bearing ensure a suitable applications under low speed rotating and oscillating motion. CSB- 20M is a material with POM thickness of 0.2~0.35mm without oil indents on the surface, it is a machinable material after assembling. Typical Applications The material has good wear resistance and it is suitable for middle to high load applications under the work conditions of impact load and dusty environment. A pre-lubricating is necessary before assembling. The applications of this material include the commercial vehicle axel, brake system,suspension system, agricultural machinery, forest machinery and material handling machinery. It could be used to replace some traditional steel or bronze sleeves .
