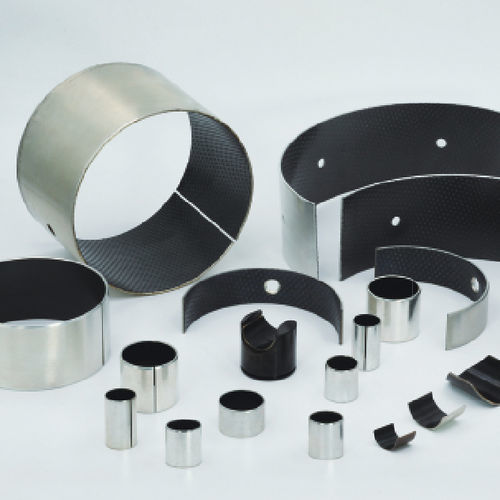

Cylindrical plain bearing CSB-80 series

carbon steelsintered bronzePTFE

1.PEEK/PTFE thickness 0.20~0.35 mm, provides good wear resistance. This bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing. 2.Sintered bronze thickness 0.20~0.35mm, provides strong mechanical bond and excellent thermal conductivity. 3.Low-carbon steel, provides mechanical strength and thermal conductivity. Features It is suitable for boundary lubricating applications. It is recommended to lubricate the components with grease before assembling. The oil indents can hold the lubricant with optimized matrix and to hold possible incoming containments during the operation. Lubricating during the operation helps to prolong the bearing duration. The wide o operation temperature range of -150 +250 C and theoC ~ reliable chemical resistance of the bearing ensure a suitable applications under middle to high load conditions. CSB-80M is a material with PEEK/PTFE thickness of 0.1 0.2mm without oil indents on the~ surface, it is a machinable material after assembling. Typical Applications The material has wide operation temperature range and can be used under high PV value condition. It is used in hydraulic motors, pumps, diesel engine common rail system and heavy truck brake systems.
