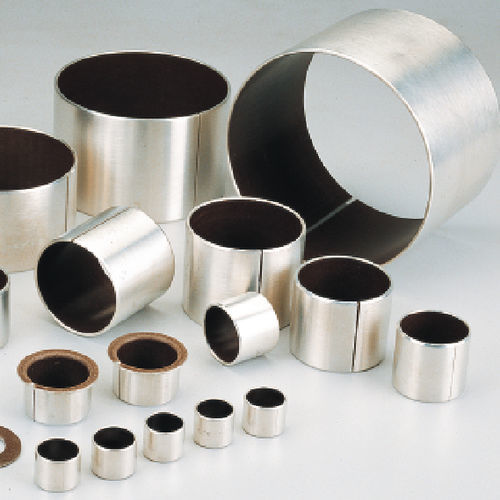

Cylindrical plain bearing CSB-50

steelsintered bronzePTFE

1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transferred film, which effectively coats the mating surfaces of the bearing assembly to establish the self-lubricating feature. 2. Sintered bronze powder thickness 0.20~0.35mm, provides strong mechanical bond and excellent thermal conductivity. 3. Steel backing Provides mechanical strength. Features Steel+Porous Bronze+PTFE/Fibre The material is with good wear resistance, low friction coefficient low noise corrosion resistance and high chemical resistance. It is suitable for the applications where the lubricating is hard or impossible. The machining requirement of the mating parts is not critical so this kind of materials are widely used in general industry Typical Applications Automotive applications include steering system, shock absorbers, door hinges, seat recliners, seat frames and magnetic valves; It is widely used in the general industry like gear pumps, vane pumps,piston pumps, air cylinders and hydraulic cylinders; The other applications include material handling machinery, packing machines, textile machines, forest machines and the home appliances such as the air conditioners, body fit machines, washing machines and refrigerators, etc.
