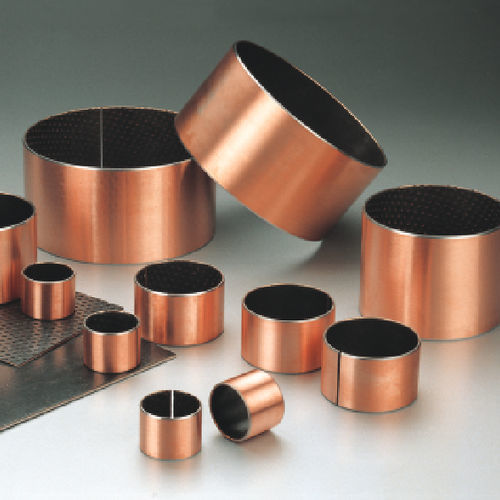

Cylindrical plain bearing CSB-22

carbon steelsintered bronzePVDF

1. PVDF thickness 0.20~0.35mm, provides good wear resistance and lower friction coefficients even under the poor lubricating conditions. 2.Sintered bronze thickness 0.20~0.35mm, provides strong mechanical bond and excellent thermal conductivity. 3. Low-carbon steel, provides mechanical strength and thermal conductivity. Features It is suitable for boundary lubricating applications. It is recommended to lubricate the components with grease before assembling. CSB-22M is a material with PVDF thickness of 0.1 0.2mm without oil indents on the~ surface, it is a machinable material after assembling. Typical Applications The material has good wear resistance and it is suitable for middle to high load applications under the work conditions of impact load and dusty environment. A pre-lubricating is necessary before assembling. The applications of this material include the commercial vehicle axel, brake system,suspension system, air compressors, hydraulic piston pumps, motors,as well as agriculture machinery, forest machinery and material handling machinery.
