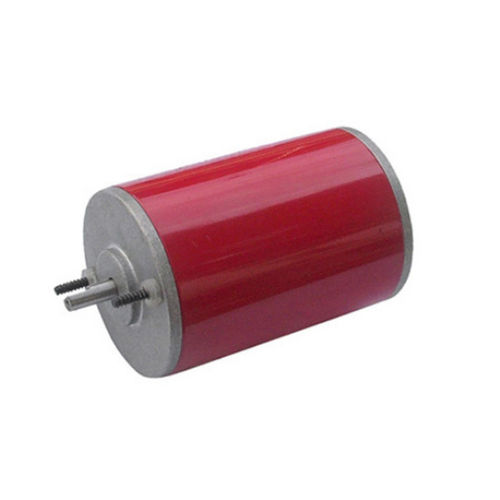

Brushed motor 80ZYT12 seriesDC12 VIP54
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 12 V
- Protection class
- IP54, IP65, IP44, IP67, IP68
- Other characteristics
- custom
- Power
Min.: 60 W
(0.08 hp)Max.: 350 W
(0.48 hp)42 W, 60 W
(0.06 hp, 0.08 hp)- Intensity
Min.: 0 A
Max.: 8 A
- Torque
0.14 Nm, 0.15 Nm
(0.103259 ft.lb, 0.110634 ft.lb)- Rotational speed
2,890 rpm, 3,400 rpm, 3,900 rpm, 4,300 rpm
(18,158.4055 rad.min-1, 21,362.83 rad.min-1, 24,504.4227 rad.min-1, 27,017.6968 rad.min-1)- Diameter
80 mm
(3.15 in)
Description
80ZY DC MOTOR GENERAL SPECS.:
· Motor OD: 80MM
· Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC
· Power: 60W ~ 350W
· Output Speed: 1100 ~ 8000RPM
· Protection Class: IP68, IP67, IP65, IP54, IP44
· Insulation Class: F, E or B
· Without Gearbox
· Customized shaft & front cover available upon request
80ZYMOTOR TYPICAL SPECS.:
Model No. : Voltage : Rated Power : Rated Speea : Rated Torque : Rated Current : No Load Speed : L
Units : V : W : rpm : mN.m : A : rpm : mm
80ZYT12-42 : 12 : 42 : 2890 : 140 : <5.5 : 3400 : 115.4
80ZYT12-6C : 12 : 60 : 3900 : 150 : <8.0 : 4300 : 115.4
