Brushed motor 45ZYN75
DC24 V12 V

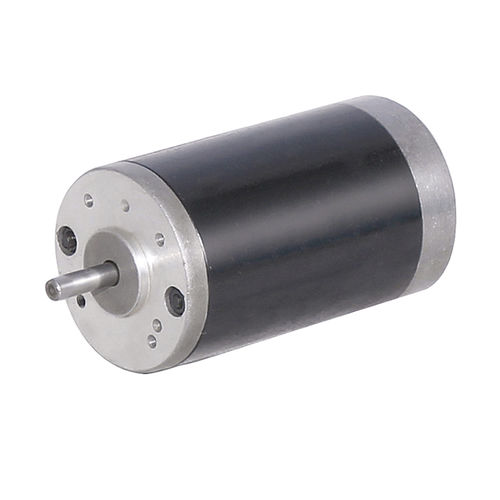

Brushed motor - 45ZYN75 - Zhejiang Dongzheng Motor Co., Ltd. - DC / 24 V / 12 V

Add to favorites

Compare this product

Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Type: brushed, DC
Voltage: 24 V, 12 V
Configuration: compact
Protection class: IP68, EMC
Applications: industrial, for medical equipment, for household appliances, for the automotive industry
Other characteristics: custom, reversible, with built-in encoder
Power: 13 W, 25 W, 30 W
(0.02 hp, 0.03 hp, 0.04 hp)
Intensity: 250 mA, 300 mA
Torque: 0.008 Nm, 0.013 Nm, 0.15 Nm
(0.0059 ft.lb, 0.009588 ft.lb, 0.110634 ft.lb)
Rotational speed: 1,600 rpm, 2,000 rpm, 2,400 rpm
(10,053.0965 rad.min-1, 12,566.3706 rad.min-1, 15,079.6447 rad.min-1)
Diameter: 45 mm
(1.77 in)

Description

Characteristics Motor type : Rare earth magnet DC motor Optional gearbox type : Planetary/Spur/Worm/Right Angle Diameter : 45mm Length : 75mm Nominal voltage : 12V/24V DC or customized No load current : 0.25A; 0.30A; No load speed : 2000rpm; 2500rpm; 3000rpm Norminal current : 0.80A; 1.70A; 2.50A Nominal speed : 1600rpm; 2000rpm; 2400rpm Nominal torque : 80mN.m; 130mN.m; 150mN.m; Nominal power : 13W; 25W; 30W IP rating : up to IP68 Description Compact design high torque rare earth magnet DC motor The 45ZYN75 model of brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox Options Planetary/Spur/Worm/Right Angle gearbox Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
