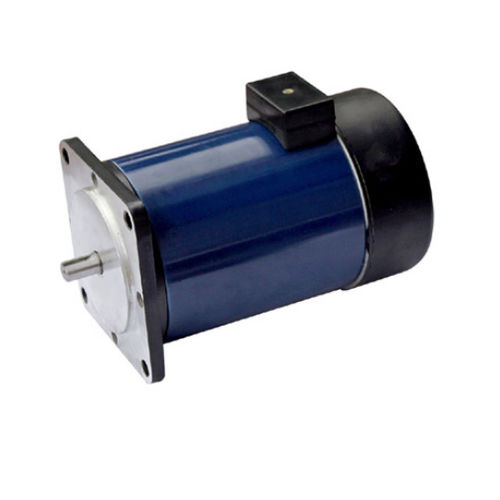

Brushed motor 130ZYT seriesDC220 V110 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 220 V, 110 V, 24 V, 12 V, 48 V
- Configuration
- permanent magnet
- Other characteristics
- custom, NEMA
- Power
Min.: 300 W
(0.41 hp)Max.: 1,750 W
(2.38 hp)750 W, 800 W
(1.02 hp, 1.09 hp)- Intensity
5 A, 42 A, 47 A
- Torque
3.05 Nm, 3.68 Nm, 4.78 Nm
(2.249565 ft.lb, 2.714229 ft.lb, 3.525547 ft.lb)- Rotational speed
Min.: 750 rpm
(4,712.389 rad.min-1)Max.: 9,000 rpm
(56,548.6678 rad.min-1)- Diameter
130 mm
(5.12 in)
Description
· Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, 110V DC, 300V DC
· Without Gearbox
· Customized shaft & front cover(NEMA 48C, NEMA 56C, IEC61/71/80 B5/B14, NEMA 143TC/145TC) available upon request
130ZY DC BRUSH MOTOR TYPICAL SPECS.
Model V - W - rpm - N.m - A - no-load rpm - length mm
130ZY24-800 - 24 - 800 - 2500 - 3.05 - 47 - 2800 - 230
130ZY24-600 - 24 - 750 - 1950 - 3.68 - 42 - 2200 - 274
130ZY220-750 - 220 - 750 - 1500 - 4.78 - 4.5 - 1700 - 274
130ZY12-375 - 12 - 375 - 470 - 7.15 - 42 - 550 - 306
