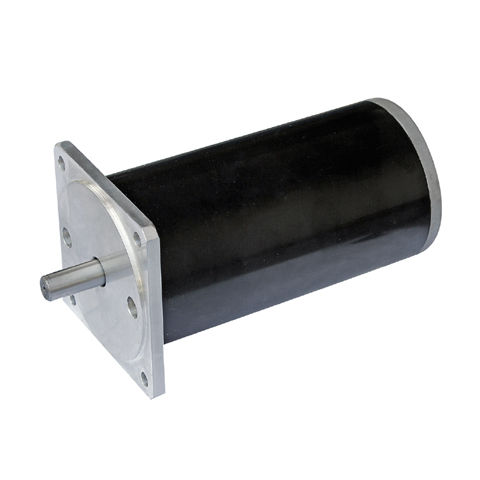

Brushed motor 71B5 115ZY seriesDC220 V115 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 220 V, 115 V, 130 V, 24 V, 12 V, 38 V
- Configuration
- permanent magnet
- Other characteristics
- NEMA
- Power
Min.: 183 W
(0.25 hp)Max.: 2,400 W
(3.26 hp)- Intensity
Min.: 4.5 A
Max.: 50 A
- Torque
1 Nm, 2.5 Nm, 3.7 Nm, 5 Nm
(0.737562 ft.lb, 1.843905 ft.lb, 2.72898 ft.lb, 3.687811 ft.lb)- Rotational speed
Min.: 1,750 rpm
(10,995.5743 rad.min-1)Max.: 4,500 rpm
(28,274.3339 rad.min-1)
Description
115ZYT DC BRUSH MOTOR GENERAL SPECS.
· Motor OD: 115MM
· Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, 110V DC, 300V DC
· Power: 250W ~ 2500W
· Output Speed: 450 ~ 9000RPM
· Without Gearbox
· Customized shaft & front cover (NEMA 48C, NEMA 56C, IEC61/71/80 B5/B14, NEMA 143TC/145TC, TENV, TEFC) available upon request
