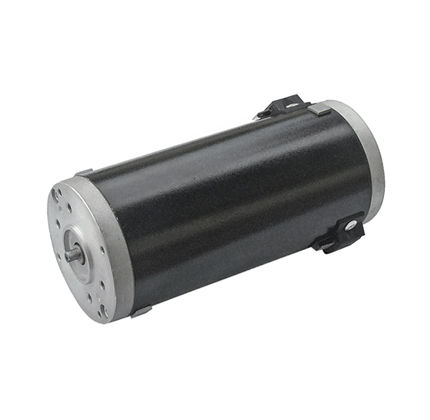

Brushed motor 90ZYT seriesDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 12 V
- Number of poles
- 2-pole
- Other characteristics
- custom
- Power
Min.: 120 W
(0.16 hp)Max.: 750 W
(1.02 hp)200 W, 250 W
(0.27 hp, 0.34 hp)- Intensity
11 A, 14 A, 22 A, 28 A
- Torque
0.5 Nm, 0.955 Nm
(0.368781 ft.lb, 0.704372 ft.lb)- Rotational speed
Min.: 750 rpm
(4,712.389 rad.min-1)Max.: 9,000 rpm
(56,548.6678 rad.min-1)- Diameter
90 mm
(3.54 in)
Description
90ZY DC BRUSH MOTOR GENERAL SPECS.
· Motor OD: 90
· Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC
· Power: 120W ~ 750W
· Output Speed: 750 ~ 9000RPM
· Without Gearbox
· Customized shaft & front cover available upon request
Mode! No. - Voltage - Rated Power - Rated Speeo - Rated Torque - Rated Current - No Load Speed - L
Units - V - W - rpm - mN.m - A - rpm - mm
90ZYT12-25C - 12 - 250 - 4750 - 500 - 27.8 - 5540 - 155
90ZYT12-20C - 12 - 200 - 1980 - 955 - 22.2 - 2700 - 20C
90ZYT24-25C - 24 - 250 - 4750 - 500 - 13.8 - 5100 - 155
90ZYT24-20C - 24 - 200 - 1980 - 955 - 11.2 - 2700 - 20C
