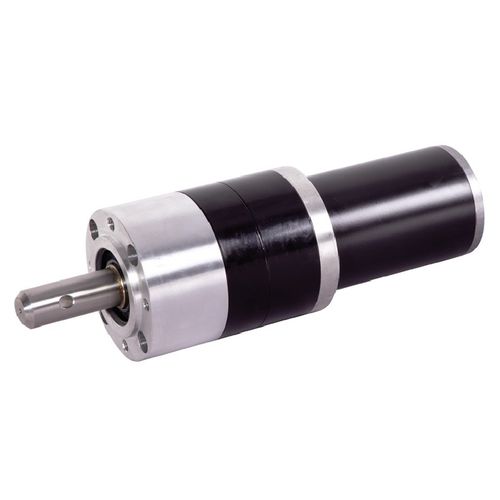

Planetary gear-motor 120JX3000K/96ZY140

DCpermanent magnetcoaxial

Characteristics Motor type : Brush commutated DC motor Gearbox type : Planetary Diameter : Gearbox: 120mm; DC motor: 96mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:4.8 ~1:427 No load current : 1.0A; 1.80A Nominal current : 9.0A; 13.00A No load speed : 2000rpm; 3500rpm Nominal speed : 1600rpm; 2800rpm Permissible load range : up to 200N.m for S1 duty cycle Nominal power : 150W; 200W IP rating : up to IP68 Description High torque DC planetary gear motor The 96ZY140 model of brushed DC motor is equipped with a 120mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc. Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.
