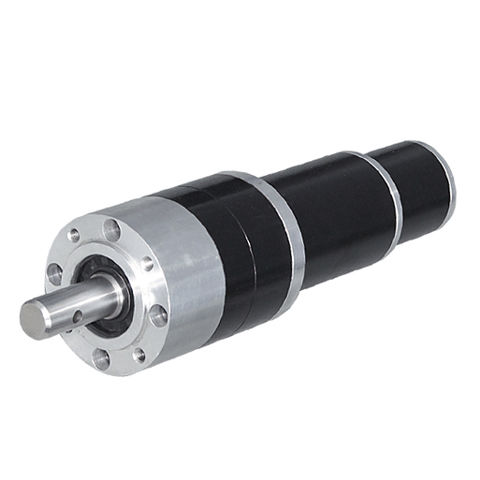

DC gear-motor 96ZY-22020/120JX426G30permanent magnetplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W, 0 W...10 W
- Voltage
- 220 V
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Performance
- high-torque, high-efficiency, high-performance
- Product applications
- for automation, for industrial applications, for vehicles, for lifting applications
- Other characteristics
- low-speed
- Gear ratio
426 unit
Description
DC PLANETARY GEAR MOTOR 96ZY-22020/120JX426G30 TYPICAL SPECS.:
· Voltage 220V DC
· Motor Rated Speed 1500RPM
· Motor Rated Torque 1.5N.m
· Rated Output Speed 3.5RPM
· Rated Torque 460N.m for Continuous Running ( 600N.m for Intermittent Running )
· Gear Ratio 426/1
