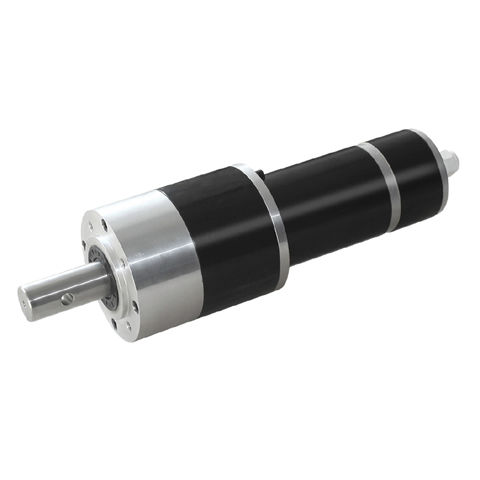

DC gear-motor 80ZY125-1231CD/110JX646G3072permanent magnetplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 12 V
- Torque
- 100 - 200 Nm, 200 - 500 Nm
- Performance
- high-torque, high-power, high-efficiency, high-performance
- Product applications
- for automation, for industrial applications, for lifting applications, for conveyor
- Other characteristics
- with encoder, low-speed
- Gear ratio
426 unit
Description
DC PLANETARY GEAR MOTOR 80ZY125-1231CD/110JX646G3072 TYPICAL SPECS.:
· Voltage 12V DC
· No-Load Current 2A
· Max Load Current 18A
· No-Load Output Speed 4.8RPM
· Rated Output Speed 3.8RPM
· Rated Output Torque 200N.m for Continuous Running
· Rated Output Torque 300N.m for Intermittent Running
· Gear Ratio 426/1
· With Encoder & Brake
