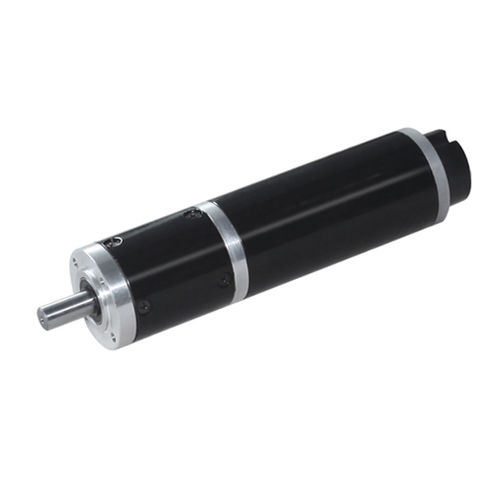

Gear-motor with encoder 52JXM_52ZY125DCpermanent magnetplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W, 50 W...100 W, 0 W...10 W
- Voltage
- 24 V, 12 V, 36 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm
- Performance
- high-torque, high-efficiency, high-performance
- Product applications
- for industrial applications
- Other characteristics
- with encoder
Description
DC PLANETARY GEARED MOTOR 52JX300K/52ZY125H SPECS AND FEATURE:
Voltage 24V DC
No-Load Current <0.8A
No-Load Speed 62RPM
Rated Speed 50RPM
Rated Torque 10.0N.m Min.
Gear Ratio 65/1
Magnetic Encoder 5V DC, 2 Channel, 8ppr
Voltage 24V DC
No-Load Current <0.8A
No-Load Speed 54RPM
Rated Speed 43RPM
Rated Torque 10.0N.m Min.
Gear Ratio 76/1
Magnetic Encoder 5V DC, 2 Channel, 2ppr
