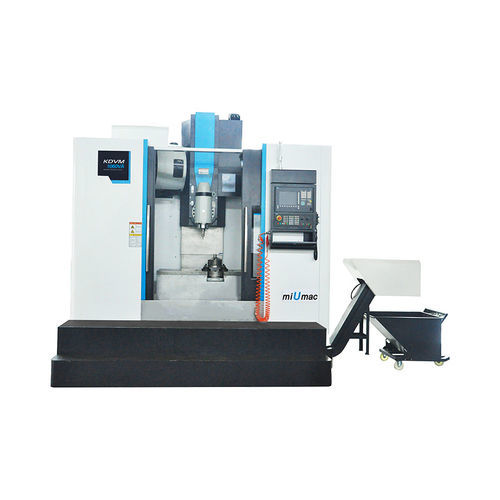

5-axis CNC machining center KDVM1060VA

verticalHSK A-63BBT40

5-axis linked system such as FANUC, SIMENS is adopted to support the characteristics of high speed, high precision, rapid and stable feed;Precision linear guide ways used for X/Y/Z to ensure machines' high rigidity and high precision. Item - Unit - KDVM1060VA Processing range -   -   X/Y/Z axis travel  - mm - 1000/600/600 A axis rotation angle   - Deg. - 360 B axis rotation angle   - Deg. - ±110 C axis  rotation angle   - Deg. - － Distance from spindle centerline to column surface - mm - 640 Distance from spindle centerline to worktable - mm - 395～995 Distance from spindle nose to worktable  - mm - 150-750 Distance from A axis centerline to worktable surface - mm - 160 Work table  -   -   Rotary table diameter - mm - Φ250（A axis） T-slot(width x number x spacing) - mm - 18×5×100 Max. load of rotary table - kg - 250（with tailstock） Rectangular table size - mm - 1700×600 Max. load of rectangular table  - kg - 800 Feed system -   -   X/Y/Z axis rapid feed - m/min - 30/30/30 X/Y/Z axis torque - Nm - 27/27/27 A-axis Max. speed - rpm - 50 B-axis Max. speed - rpm - 16 C-axis Max. speed - rpm - － A axis allowable cutting force - Kgf-m - 112 B axis allowable cutting force - Kgf-m - 100 C axis allowable cutting force - Kgf-m - － Spindle system -   -   Spindle drive mode -   - Built-in type Spindle Max. speed - rpm - 15000 Spindle rated power - kW - 21 Spindle rated torque - Nm - 76 Tool shank specifications -   - HSK-A63/BBT40 Tool changing system (disk type) -   -   Tool magazine capacity - pcs - 24 Tool change time (T-T) - Sec. - 2 Accuracy -   -   X/Y/Z axis repeat positioning accuracy - mm - ≤0.006 X/Y/Z axis positioning accuracy - mm - ≤0.01 A/C, B axis repeat positioning accuracy - mm - ≤6 A/C, B axis positioning accuracy - mm - ≤12 A/C, B Min. indexing unit - Deg. - 0.001 Others  -   -   Machine weight  - kg - 6500
