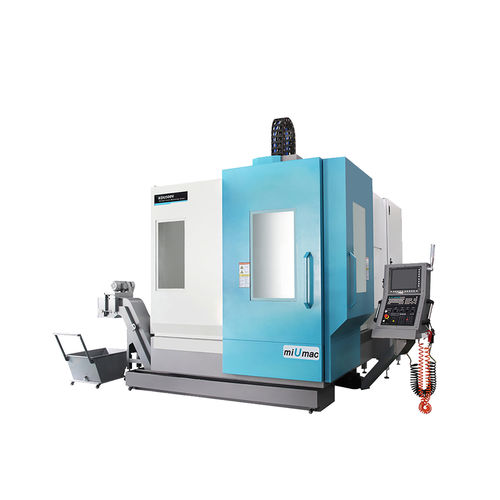

5-axis CNC machining center KDU500V

verticalBT 4024 tools

High precision biaxial indexing plate is controlled by CNC system to realize 5-axis-simultaneous movement. Precision linear guide ways used for X/Y/Z to ensure machines' high rigidity and high precision. Item - Unit  - KDU500V Processing range -   -   X/Y/Z axis travel  - mm - 820/520/500 B axis rotation angle - Deg. - ±120 C axis rotation angle -   - 360 Distance from spindle nose to worktable  - mm - 150-650 Max. processing Dia. & height of workpiece - mm - Φ520×480 Work table  -   -   Table size - mm - Φ500 Table load - Kg - 300 T-slot (number x width x spacing) - mm - 5×14×100 Feed system -   -   X/Y/Z axis rapid feed - m/min - 36/36/36 Max. speed of B/C axis - rpm - 60/100 X/Y/Z axis motor torque - Nm - 27/27/27 B axis rated/Max. torque - Nm - 2000/3600 C-axis rated/Max. torque - Nm - 600/1100 Spindle system -   -   Spindle drive mode -   - direct type Spindle Max. speed - rpm - 12000 Spindle rated power - kW - 11 Spindle Max. torque - Nm - 120 Tool shank specifications -   - BT40 Tool changing system -   -   Tool magazine capacity - pcs - 24 Tool change time (T-T) - Sec. - 2 Accuracy -   -   X/Y/Z repeat positioning accuracy - mm - ≤0.006/0.004/0.004 X/Y/Z positioning accuracy - mm - ≤0.008/0.006/0.006 B/C axis repeat positioning accuracy - Sec. - ≤6 B/C axis  positioning accuracy - Sec. - ≤12 Others  -   -   CNC system  -   - Siemens one Machine weight  - kg - 11000
