- Machine-tools
- Machining Center
- 5-axis machining center
- Zhejiang KAIDA Machine Tool CO., LTD.

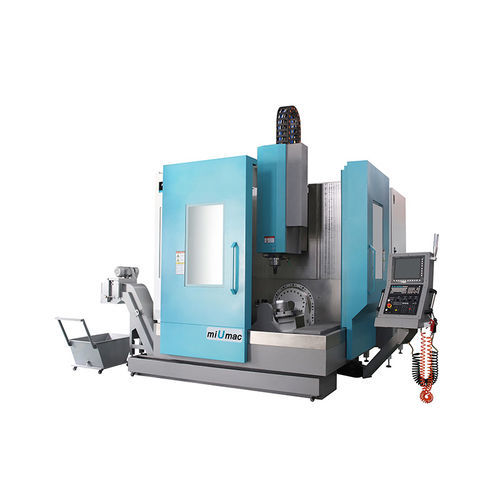

5-axis CNC machining center KDU400VverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Certifications
- ISO 9001
- Applications
- for the automobile industry, for molds, for the aeronautical industry, for the mold industry, for small parts production
- Other characteristics
- high-speed, high-performance, high-productivity
- X travel
800 mm
(31.5 in)- Y travel
360 mm
(14.17 in)- Z travel
400 mm
(15.75 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
11 kW
(14.96 hp)- Table rotation (C axis)
360 °
- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
200 kg
(441 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.006 mm
(0.00024 in)- Tool-changing time
2 s
- Weight
8,500 kg
(18,739.29 lb)
Description
High precision biaxial indexing plate is controlled by CNC system to realize 5-axis-simultaneous movement. Precision linear guide ways used for X/Y/Z to ensure machines' high rigidity and high precision.
