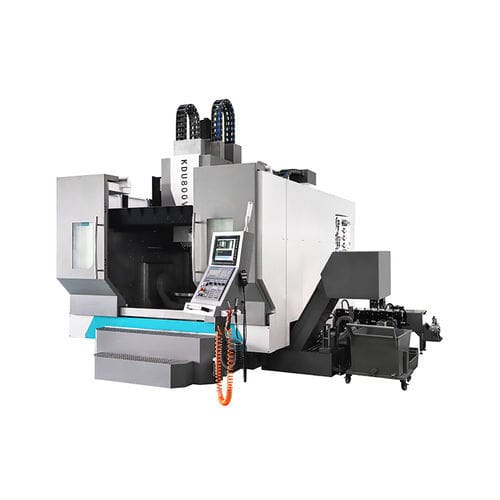

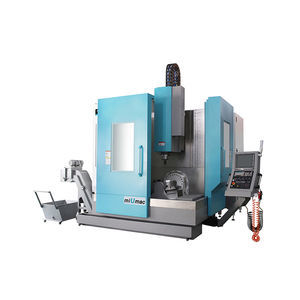

5-axis CNC machining center KDU800VT

verticalHSK A-6332 tools

5-axis linked system such as FANUC, SIMENS is adopted to support the characteristics of high speed, high precision, rapid and stable feed;Precision linear guide ways used for X/Y/Z ensured machines' high rigidity and high precision. Processing range - - shaft rotation angle A - Deg. - -120～+120 shaft rotation angle C - Deg. - 360 Distance from spindle tip to work table - mm - 150-750 Max. processing diameter and workpiece height - mm - Φ800×500 Work table - - HIWIN from Taiwan Table size - mm - Φ800 Maximum oscillation diameter on the work table - mm - Φ1000 T-slot (number x width x spacing) - mm - 7×18×100 To feed - - Number of Y-axis transmission shafts - - 2 X/Y/Z axis rapid feed - - diameter 50, pitch 12 X/Y/Z axis torque - mm - 55/65/45 Max. A-axis speed - rpm - 60 Max. C-axis speed - rpm - 90 X/Y/Z axis motor torque - Nm - 48/96/48 Rated A-axis/max. torque - Nm - 4400/7800 Rated C-axis/Max. torque - Nm - 2200/3900 A/C shaft drive mode - - Torque engine Number of shaft drive motors A - - 2 Spindle - - Motorized spindle（German KESSLER） Max. spindle torque - Nm - 150 Tool magazine - - Taiwanese music Tool magazine type - - type of current Max. tool diameter (adjacent space) - mm - 75/125 Max. tool length - mm - 300 Accuracy - - X/Y/Z repeat positioning accuracy - mm - ≤0.006 Repeated A/C positioning accuracy - mm - ≤6 Air conditioner positioning accuracy - mm - ≤12 Others - - Protection system - - fully enclosed protection with skylight Machine tool footprint (C×L) - mm - 7300×7300 Controller system - - newest system
