3-axis CNC machining center KDVM1580L
verticalBT 5024 tools

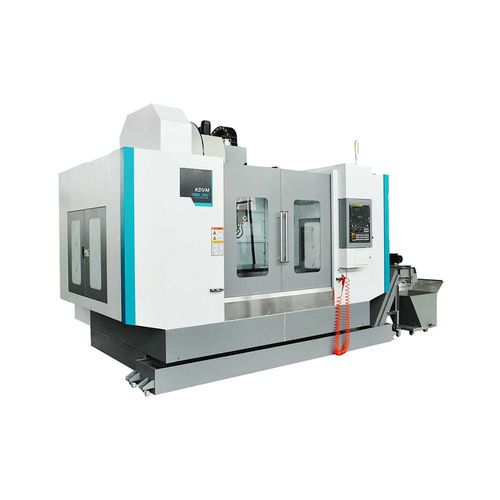

3-axis CNC machining center - KDVM1580L - Zhejiang KAIDA Machine Tool CO., LTD. - vertical / BT 50 / 24 tools

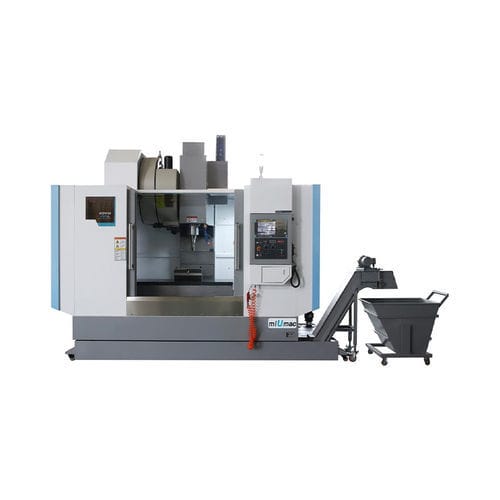

3-axis CNC machining center - KDVM1580L - Zhejiang KAIDA Machine Tool CO., LTD. - vertical / BT 50 / 24 tools
3-axis CNC machining center - KDVM1580L - Zhejiang KAIDA Machine Tool CO., LTD. - vertical / BT 50 / 24 tools - image - 2
3-axis CNC machining center - KDVM1580L - Zhejiang KAIDA Machine Tool CO., LTD. - vertical / BT 50 / 24 tools - image - 3
3-axis CNC machining center - KDVM1580L - Zhejiang KAIDA Machine Tool CO., LTD. - vertical / BT 50 / 24 tools - image - 4
Add to favorites
Compare this product
Go to the Zhejiang KAIDA Machine Tool CO., LTD. website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 50
Number of tool stations
24 tools
Associated functions
milling
Certifications
ISO 9001
Applications
for the automobile industry, for molds, heavy-duty
Other characteristics
high-performance, high-productivity, precision
X travel

1,500 mm
(59.06 in)

Y travel

800 mm
(31.5 in)

Z travel

700 mm
(27.56 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Power

15 kW, 18.5 kW
(20.39 hp, 25.15 hp)

Work feed X-axis

20 m/min

Work feed Y-axis

20 m/min

Work feed Z-axis

20 m/min

Table load capacity

1,500 kg
(3,307 lb)

Tool weight (max)

18 kg
(39.7 lb)

Positioning accuracy

0.008 mm
(0.00031 in)

Repeatability

0.008 mm
(0.00031 in)

Tool-changing time

4 s

Weight

13 kg
(28.66 lb)

Overall length

3,900 mm
(153.5 in)

Overall width

3,275 mm
(128.9 in)

Overall height

3,150 mm
(124 in)

Description

CNC Vertical Machining Center The casting is made of resin-bonded sand, after natural aging and twice artificial aging process, it assured good precision and stability. Item - Unit - KDVM1580L   X axis travel - mm - 1500 Y axis travel - mm - 800 Z axis travel - mm - 700 Distance from spindle centerline to column guide rail surface - mm - 950 Distance from spindle nose to worktable surface - mm - 180-880   Table size - mm - 1700×800  T-slot (width x number x sapcing) - mm - 22×5×150  Max. table load - kg - 1500   Spindle taper & Dia. -   - BT50/Φ155 Spindle speed - rpm - 6000 Spindle motor power - kW - 15/18.5   X/Y/Z axis rapid movement speed - m/min - 20/20/20 X/Y/Z axis motor torque - Nm - 27/27/27 X roller linear guide - mm - 55 Y roller linear guide - mm - 45 Z roller linear guide - mm - 55 X/Y/Z positioning accuracy - mm - ≤0.001/0.008/0.008 X/Y/Z repeat positioning accuracy - mm - ≤0.008/0.006/0.006   Tool magazine capacity - pcs - 24 Max. tool Dia. (adjacent/adjacent space) - mm - Ф112/Ф200 Max. tool weight - kg - 18 Max. tool length - mm - 300 Tool change time (T-T) - Sec. - 4   Spindle unloading method -   - pneumatic X/Y/Z axis motor connection mode -   - direct type Overall dimensions(LxWxH) -   - 3900x3275x3150(w/o chip conveyor) Machine weight - t - 13 CNC system -   - FANUC 0i MF（5）
