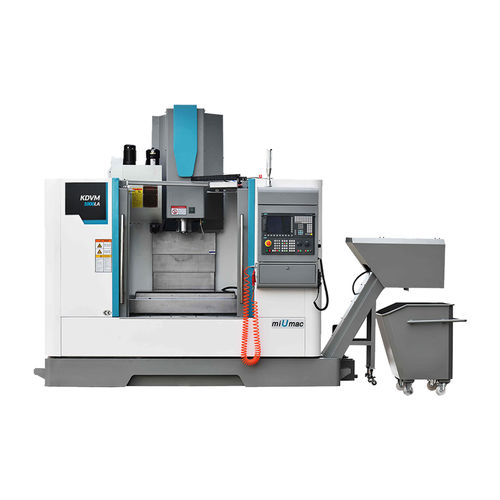

3-axis CNC machining center KDVM1000LAverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Certifications
- ISO 9001
- Applications
- for the automobile industry, for molds, for the aeronautical industry, for large workpieces
- Other characteristics
- high-performance, high-productivity, high-precision, CE
- X travel
1,000 mm
(39.37 in)- Y travel
520 mm
(20.47 in)- Z travel
520 mm
(20.47 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
800 kg
(1,764 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.005 mm
(0.0002 in)- Tool-changing time
2 s
- Weight
5.58 t
(6.15 us ton)- Overall length
3,060 mm
(120.5 in)- Overall width
2,300 mm
(90.6 in)- Overall height
2,700 mm
(106.3 in)
Description
CNC Vertical Machining Center
The casting is made of resin-bonded sand, after natural aging and twice artificial aging process, it assured good precision and stability.
Item - Unit - KDVM1000LA
X axis travel - mm - 1000
Y axis travel - mm - 520
Z axis travel - mm - 520
Distance from spindle centerline to column guide rail surface - mm - 550
Distance from spindle nose to worktable surface - mm - 150-670
Work table - -
Table size - mm - 1130×510
T-slot (width x number x sapcing) - mm - 18×5×100
Max. table load - kg - 800
Spindle taper & Dia. - - BT40/Φ150
Spindle speed - rpm - 8000
Spindle motor power - kW - 11/15
X, Y axis rapid movement speed - m/min - 36/36
Z axis rapid movement speed - m/min - 30
X/Y/Z axis motor torque - Nm - 20/20/20
X ball linear guide - mm - 35
Y/Z ball linear guide - mm - 35
X/Y/Z positioning accuracy - mm - ≤0.008/0.006/0.006
X/Y/Z repeat positioning accuracy - mm - ≤0.005/0.004/0.004
Tool magazine capacity - pcs - 24
Max. tool Dia. (adjacent/adjacent space) - mm - Ф78/Ф120
Max. tool weight - kg - 8
Max. tool length - mm - 300
Tool change time (T-T) - Sec. - 2
Others - -
Spindle unloading method - - pneumatic
X/Y/Z axis motor connection mode - - direct type
Overall dimensions(LxWxH) - - 3060x2300x2700(w/o chip conveyor)
Machine weight - t - 5.58
CNC system - - FANUC 0i MF（5）
