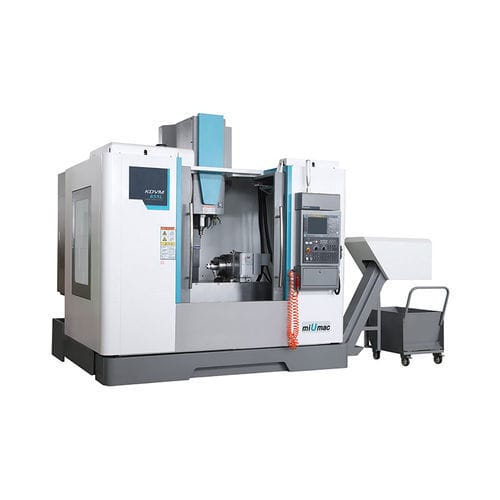

3-axis CNC machining center KDVM855LverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Certifications
- ISO 9001
- Applications
- for the automobile industry, for molds, for the mold industry
- Other characteristics
- high-performance, direct-drive, high-precision
- X travel
800 mm
(31.5 in)- Y travel
550 mm
(21.65 in)- Z travel
550 mm
(21.65 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
800 kg
(1,764 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.006 mm
(0.00024 in)- Tool-changing time
2 s
- Weight
5.25 t
(5.79 us ton)- Overall length
2,600 mm
(102.4 in)- Overall width
2,300 mm
(90.6 in)- Overall height
2,700 mm
(106.3 in)
Description
1. The casting is made of resin-bonded sand, after natural aging and twice artficial aging process, it assured good precision and stability.
2. Wide base, strengthened column design and precision linear ways for X/Y/Z ensure machines' good performance and precision stability, they are suitable for both rough and finishing machining.
Travel
Distance from spindle centerline to column guide rail surface - mm - 595
Distance from spindle nose to worktable surface - mm - 120-670
Work table - -
Table size - mm - 1000×550
T-slot (width x number x sapcing) - mm - 18×5×90
Feed system
X/Y/Z axis motor torque - Nm - 20/20/20
X roller linear guide - mm - 35
Y/Z roller linear guide - mm - 45
X/Y/Z repeat positioning accuracy - mm - ≤0.004
Tool changing system
Max. tool Dia. (adjacent/adjacent space) - mm - Ф78/Ф120
Max. tool length - mm - 300
Others -
-
Spindle unloading method - - pneumatic
CNC system - - FANUC 0i MF（5）
