- Zhejiang KAIDA Machine Tool CO., LTD.

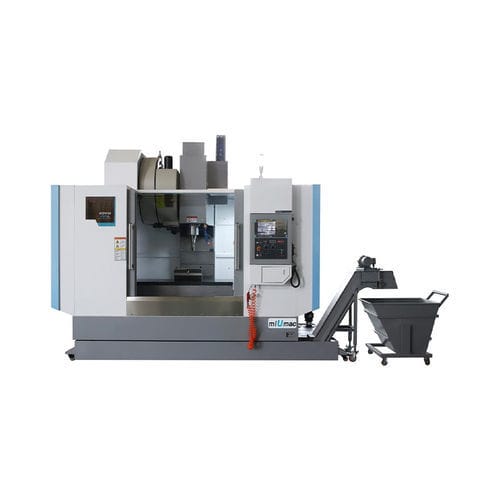

3-axis CNC machining center KDVM1370LverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Certifications
- ISO 9001
- Applications
- for the automobile industry, for molds, heavy-duty
- Other characteristics
- high-performance, direct-drive, high-precision
- X travel
1,300 mm
(51.18 in)- Y travel
700 mm
(27.56 in)- Z travel
700 mm
(27.56 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Work feed X-axis
20 m/min
- Work feed Y-axis
20 m/min
- Work feed Z-axis
20 m/min
- Table load capacity
900 kg
(1,984 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.008 mm
(0.00031 in)- Tool-changing time
2 s
- Weight
9.5 t
(10.47 us ton)- Overall length
3,850 mm
(151.6 in)- Overall width
2,770 mm
(109.1 in)- Overall height
2,835 mm
(111.6 in)
Description
The casting is made of resin-bonded sand, after natural aging and twice artificial aging process, it assured good precision and stability.
