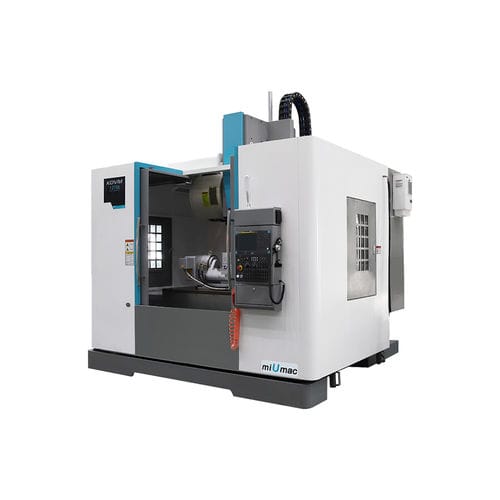

3-axis CNC machining center KDVM1270L

verticalBT 4024 tools

CNC Vertical Machining Center 1. The casting is made of resin-bonded sand, after natural aging and twice artificial aging process, it assured good precision and stability. 2. Wide base, strengthened column design and precision linear ways for XNYIZ ensure machines' good performance and precision stability, they are suitable for both rough and finishing machining. Item - Unit - KDVM1270L   X axis travel - mm - 1200 Y axis travel - mm - 700 Z axis travel - mm - 700 Distance from spindle centerline to column guide rail surface - mm - 770 Distance from spindle nose to worktable surface - mm - 190-890   Table size - mm - 1360×700   T-slot (width x number x sapcing) - mm - 18×5×120  Max. table load - kg - 1000   Spindle taper & Dia. -   - BT40/Φ150 Spindle speed - rpm - 8000  Spindle motor power - kW - 11/15    X/Y axis rapid movement speed - m/min - 36/36  Z axis rapid movement speed - m/min - 30 X/Y/Z axis motor torque - Nm - 20/20/20 X roller linear guide - mm - 45 Y/Z roller linear guide - mm - 45  X/Y/Z positioning accuracy - mm - ≤0.008/0.006/0.006  X/Y/Z repeat positioning accuracy - mm - ≤0.005/0.004/0.004   Tool magazine capacity - pcs - 24 Max. tool Dia. (adjacent/adjacent space) - mm - Ф78/Ф120 Max. tool weight - kg - 8 Max. tool length - mm - 300 Tool change time (T-T) - Sec. - 2   Spindle unloading method -   - pneumatic X/Y/Z axis motor connection mode -   - direct type Overall dimensions(LxWxH) -   - 3360x3450x2950(w/o chip conveyor) Machine weight - t - 8.8 CNC system -   - FANUC 0i MF（5）
