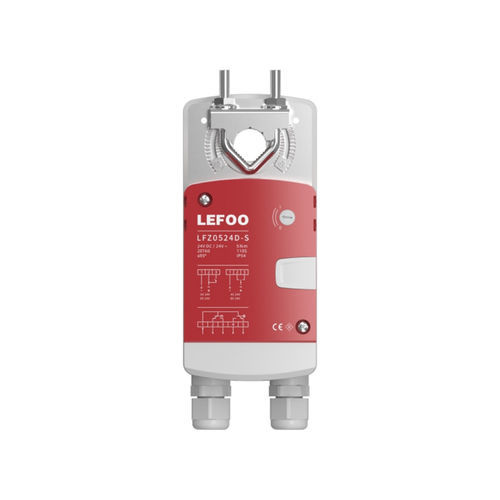

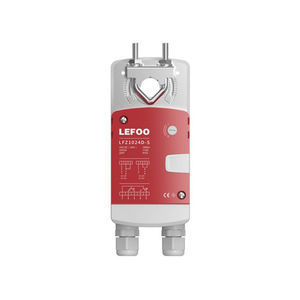

Electric damper actuator LFZ05

motorizedrotarypart-turn

Product overview
The LFZ05 damper actuator is a direct-coupled unit driven by a brushless motor, designed for reliable control of dampers in HVAC and mechanical ventilation systems. It supports multiple control modes (On/Off, 2-point, 3-point, 0(2)-10 VDC, 0(4)-20 mA, RS485) and offers low noise, long service life and easy on-site wiring with a terminal box and waterproof cable gland.

Applications

• Building automation systems (HVAC)
• Mechanical ventilation for commercial buildings
• Industrial ventilation and process air handling
• Public utilities and large facilities

Key specifications

• Model: LFZ05
• Torque: 5 Nm
• Rotation angle: ≤95°
• Running time (full stroke): 110 s
• Noise level: ≤40 dB at 1 m
• Operating life: 100,000 cycles (full stroke)
• Protection class: IP54
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -40 °C to 80 °C
• Max. ambient humidity: 5%–95% non-condensing (EN 60730-1)

Electrical parameters

• Rated voltage: AC/DC 24 V 50/60 Hz; AC 100–240 V 50/60 Hz
• Voltage range: AC/DC 19.2–28.8 V; AC 85–264 V
• Power consumption: running <4.5 W; holding <1 W
• Electrical grade: Class III (SELV) or Class II (double insulation)
• Control signals: On/Off, 2-point, 3-point, 0(2)-10 VDC, 0(4)-20 mA, RS485
• Feedback options: none / 0(2)-10 VDC / 0(4)-20 mA / RS485
• Feedback switches: 2 × SPDT 250 V / 3 A
• Electrical connection: terminal block (14–22 AWG)

Mechanical & dimensions

• Direct-coupled mounting to damper shaft
• Damper shaft length required: >50 mm
• Shaft compatibility: Ø6–16 mm round or □8×8–12×12 mm square
• Weight: 0.65 kg (24 V On/Off type)
• Refer to dimensional drawings for exact measurements

Installation & notes

• Rotation direction selectable via rotary switch; manual gear release via button for manual positioning
• Ensure correct control wiring per selected mode; use recommended cable sizes for terminal connections
• Important: for units with RS485 output powered from AC, use an isolated power supply
• Suitable for commercial and light industrial HVAC installations; verify environmental conditions before installation
