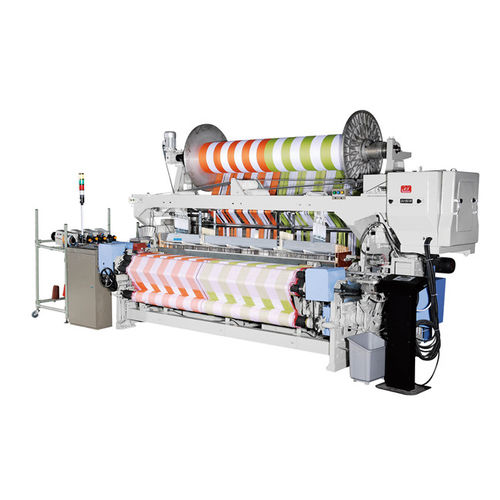

Loom YJ737B

1.application： This towel loom is used to weave all kinds of spiral satin or small jacquard satin towels for face, tea, bath and floor etc. With the material of cotton, wool and blended yarns, it is especially suitable to weave heavy towel. 2.Main Data Reed width(cm) 200(78”)、230(90”)、260(102”)、280(110”) Rotation speed(R.P.M) 240RPM(78”) Weft selection 6,8colors Yarn count Cotton:7Ne-60Ne Wool: 12Nm-100Nm Chemical fabric:100D-650D Dia of warp beam(mm) (terry) φ800 or Φ600mm,(ground) φ680 or Φ600mm (According to customers demand) Dia of rolling-up(mm) Φ600mm Let-off type Up: positive electric let-off Down: electric let-off Terry raising type Cam type movable read terry raising Height of terry(mm) Step less adjustment from 2 to 12times Shedding mechanism Upper-placed electronic dobby (mechanical dobby is optional) Number of heddle frame 16pages Weft stop Piezoelectric control Warp stop 2rows electric warp stop Color select mechanical color select (electronic color select is optional) Electric control P.L.C Motor power(KW) 2.2KW~2.6KW Weight(kg) 2000kg-2500kg Overall size(mm)LxWxH 4706x1936x2220(230/90”)
