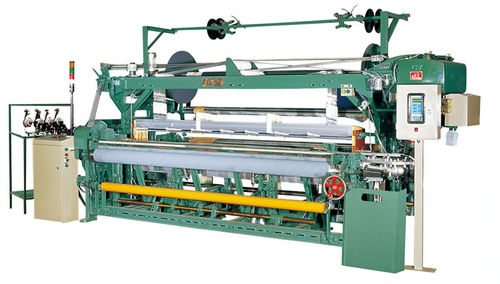

Name: - YJ2000 type 180/200/230/250/280 (PC) Towel Rapier
Description:
purposes:
the towel rapier weaving machine is mainly used as raw materials of all kinds of cotton towel, tea towel, hand towel, bath towels and other small spiral satin or satin towel jacquard fabric.
Features:
machine for my company's first generation of towel rapier looms, shuttle looms over the speed increased by 30% 40%, low noise 1015 db, the warp, weft practice automatic control, simple structure and can be reported by the aircraft supporting the whole machine and general shuttle loom.
main technical parameters:
models: YJ2000
width: 180 (74 "), 200 (78"), 230 (90 "), 250 (100"), 280 (110 " )
speed: 200 ~ 150 RPM
weft selection: 6 colors
yarn count range: cotton, chemical fiber 100650D
7Ne60Ne wool 12Nm100Nm disc by the shaft diameter: Φ600
coiling diameter: Φ400 sent Trail Type: Trail
actively raising electronic form of delivery: raising
raising activities reed height: 212 pile height adjustment
seamless opening device: mechanical dobby on the home page
heald : 16 pages
electrical control: PLC
motor power: 1.82.2KW
Weight: 17002100
Overall dimensions: 4300 × 2500 × 2120 (200cm/78 ")
