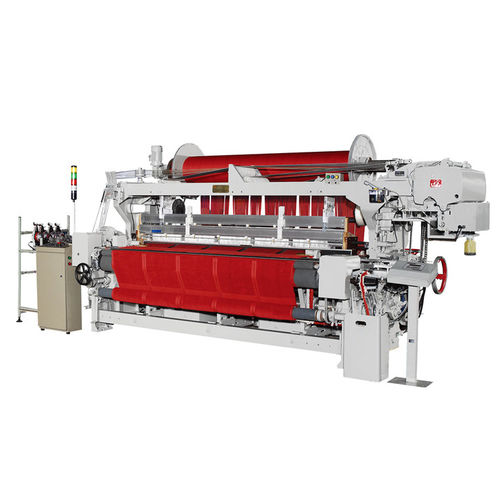

Loom YJ737

Usage: This machine is mainly used for weaving towels, tea towel, hand towel, jacquard towel bath towel and other high-end fabrics. Feature: 1.adopts the cam with eccentric shaft structure for making terry motion and replaces the old type of knocking bill motion structure, it assure the machine having high reliability of making-terry and regulating conveniency. 2.adopts short crank arm beating-up motion,increasing greatly the beating-up force during weaving thar assures the enough strenth to weave the heavy towel. 3.thicker weft beating shaft assures enough beating rigidity,it can weaving the wide fabric more than 2800mm. 4.adopts optimized six linkages weft insertion structure,make the weft insertion curve more soft 5.the two electronmagnents which controlled the terry raising,controlled by technical program which set by electric control system,it can weaving high and low terry. 6.the reed seat and other main parts made up of aluminum alloy,make the machine running faster more stable,more than 200rpm speed make it the perfect model to replace the low speed towel rapier loom. Main Data: Model - YJ737 Reed width(cm) - 200(78''), 230(90''), 260(102''), 280(110'') Rotation speed (R.P.M) - 250RPM(78'') Weft selection - 6,8 Colors Yarn count - Cotton: 7Ne-60Ne.Wool:120Nm-100Nm Chemical fabric:100D-650D Dia of warp beam(mm) - terry dia.600,ground dia.600 Dia.of rolling-up(mm) - dia.400 Let-off type - up:positive electric let-off down:intermittent mechanical let-off Terry rasing type - Producing terry by movable read
