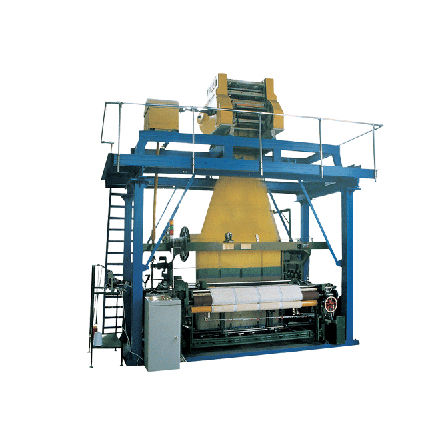

Loom YJ2002

Name: - YJ2002 type 180/200/230/250/280 Jacquard Towel Rapier Description: purposes: the jacquard-woven cotton towel rapier loom is mainly used as raw materials of all kinds of towel, tea towel, hand towel, bath towel, towels, etc., or satin towel jacquard fabric. Features: machine uses high-speed double lift jacquard machine, a loom, high speed, good stability and wide adaptability, which can make any pattern of woven terry fabrics, of raising neat, high-regulate a wide range of hair, use and maintenance. main technical parameters: models: YJ2002 Width: 190 (74 '), 200 (78'), 230 (90 '), 250 (110'), 280 (110 ' ) speed: 180135 weft selection: 6 clors yarn count range: cotton, chemical fiber 1000650D 7Ne60Ne wool 12Nm100Nm disc by the shaft diameter: Φ600 coiling diameter: Φ400 delivery The form: semi-active forms of electronic delivery by raising: Raising raising activities reed height: 212 times the adjusted gross openings in the form of high Departed: double lift back to full clear opening comprehensive forms: negative Fully elastic back pattern control in the form: Mechanical jacquard opening height: 100 jacquard total number of stitches: 896,1304,1952,2432 Pitch: 5.13 × 5.13,4 × 4 Transmission: chain drive or vertical transmission Electric Control: PLC motor power: 2KW Weight: 22002600 Overall dimensions: 4300 × 2500 × 4500 (200cm/78 ')
