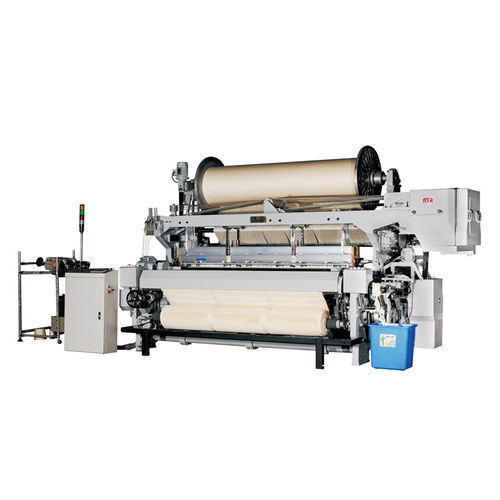

Name: - YJ738 Type 180/200/230/260 (PC) Towel Rapier
Description:
Model: YJ767
width: 200 (78 '), 230 (90'), 260 (102 ')
speed: 250rpm (78 ' ')
Weft yarn choice: 6,8 Colors
yarn count range: Cotton: 7Ne60Ne, Mao: 12Nm100Nm fiber: 100D650D
warp beam disc diameter: the warp beam Φ800, under the warp beam Φ800
Winding diameter: Φ400
way to send tracks: electronic let-off a positive way
raising: Raising
raising activities reed height: 212 times the adjusted gross
high without asking open device: mounted on the machine Fully multi-frame spring back fully
Pages: 16,22 pages
filling stop: piezoelectric ceramic control
stops: three electric-type electrical control menopausal
: PLC
Motor Power: 2.5 KW3.2KW
Weight: 24002800
Machine Dimensions: 5200 ╳ 2120 ╳ 2500 (200cm/78 ')
