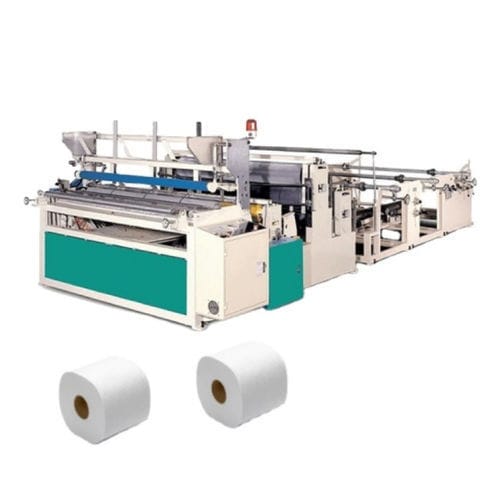

Paper production line YG1575

automatichigh-speedcontinuous

Product overview
Designed for industrial tissue production, this machine converts pulp or jumbo rolls into finished toilet rolls, facial tissues and napkins. The YG1575 is built for continuous operation with automated controls to support high daily output and predictable production parameters.

What it does

• Processes raw paper or pulp into finished consumer rolls and sheets.
• Key production stages: embossing, rewinding, perforating, cutting and packaging.

Technical advantages

• Automated tension control for stable roll formation
• Energy-saving subsystems to lower power consumption
• High-speed rewinding to maximize throughput

Applications

• Toilet paper manufacturing plants
• Jumbo roll converters and suppliers
• Medical and hygiene tissue production
• Facial tissue and retail packaging lines
• Food-service napkin production

Technical Parameter Of Tissue Making Machine (table)
Model: YG1575
Applicable Raw Paper: 2-3 plies 14–23 gsm, wood pulp paper
Raw Paper Width: Max 2100 mm
Raw Paper Dia: Max 2200 mm
Finished Size: Φ60–130 mm
Finished Core Dia: Φ35–Φ50 mm
Raw Paper Core Dia: 3″ (76.2 mm)
Perforation: Spiral perforating knife, chain wheel positioning
Production Speed: 200 m/min
Parameter Design: LCD touch screen
Control: PLC
Paper Feeding: 3 unwinding stands, pneumatic control
Air Pressure: 0.5 MPa
Power: 380 V, 50 Hz
Packaging: Wooden box

Selected FAQ
Daily output: 5 to 30 tons depending on model configuration and paper grade.
Maintenance: Routine lubrication and scheduled cleaning; replace wear parts per service intervals.

Technical specifications

• Model: YG1575
• Applicable raw paper: 2–3 plies, 14–23 gsm, wood pulp
• Raw paper width: up to 2100 mm
• Raw paper diameter: up to 2200 mm
• Finished roll diameter: Φ60–130 mm
• Finished core diameter: Φ35–Φ50 mm
• Raw paper core diameter: 3″ (76.2 mm)
• Perforation method: Spiral knife with chain wheel positioning
• Production speed: 200 m/min
• Control: PLC with LCD touch screen
• Paper feeding: 3 pneumatic unwinding stands
• Required air pressure: 0.5 MPa
• Power supply: 380 V, 50 Hz
• Packaging: Wooden box
