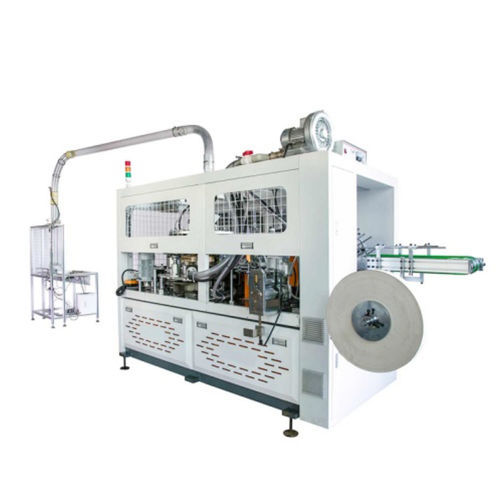

Cup forming machine YG series

paper cupfor paperautomated

Product Overview
In the beverage packaging industry, the coffee cup manufacturing machine from YG Machinery provides an integrated solution for forming, (optional) printing and packing of paper cups. Models cover single-wall and double-wall production for hot and cold beverages and support configurable sizes to meet market requirements.

Key Product Features

• Automatic production line: forming, optional printing unit, and packing system.
• Precision control systems for repeatable cup quality and minimal variation.
• Support for single-wall and double-wall cups; suitable for hot and cold beverages.
• Size range: 1 oz to 16 oz (≈30–473 ml), adjustable to customer specifications.
• Production speed: typical ranges 70–150 pcs/min per model; reported configuration range approximately 90–200 cups per minute depending on setup.
• Energy-efficient components and low-maintenance mechanical design.

Core Product Advantages

• High level of automation reduces manual handling and increases throughput.
• Energy-saving features reduce operating costs in continuous production.
• Stable, uniform output due to precise forming and control systems.
• Low maintenance requirements and operator-friendly controls enable quick onboarding.

Applications
Designed for beverage packaging operations: coffee, tea, juice and other hot/cold drink containers. Suitable for industrial cup manufacturers, contract packagers and companies requiring customized cup sizes and printed designs.

Parameters (table)
Model | YG-DP16 | YG – Gs120 | YG – 160S
Production speed | 70–90 pcs/min | 90–120 pcs/min | 120–150 pcs/min
Voltage | 380V/50Hz three phase | 380V/50Hz three phase | 380V, 25KW three phase
Paper cup specifications | 3oz–12oz | 3–16oz | 3–16oz
Machine package size | 2150x1100x1750mm (L*W*H) | 2180x1050x1600mm (L*W*H) | 2800x1100x1800mm (L*W*H)
Paper stock | 160–350g single/double PE coated paper | 150–350g/㎡ ±20g/㎡ | 150–350g/㎡ ±20g/㎡
Power | 7.8KW | 7KW | (not specified)
Weight | 1700Kg | 2100kg | 4000 kg
Paper raw materials | 160–350g | 150–350g | 150–350g

Additional Notes
Optional printing units are available for customized cup graphics. The product family supports different paper constructions (single/double layer, PE-coated). Actual production rates depend on model configuration, paper stock and printing options; reported operational ranges are approximately 90–200 cups per minute for various setups.

Technical Specifications

• Manufacturer / Brand: YG Machinery
• Commercial model (example): YG-DP16
• Other models: YG – Gs120, YG – 160S
• Production speed (model dependent): 70–150 pcs/min (per table); general reported range 90–200 cups/min depending on configuration
• Supported cup sizes: 1 oz to 16 oz (≈30–473 ml)
• Voltage / Power supply: typically 380V/50Hz three phase; higher-capacity units may indicate ~25KW total power
• Machine power examples: 7.8KW (YG-DP16), 7KW (YG–Gs120)
• Paper stock compatibility: 150–350 g/㎡; single or double PE-coated paper supported
• Machine package dimensions (examples): 2150x1100x1750mm, 2180x1050x1600mm, 2800x1100x1800mm
• Machine weights (examples): approx. 1700 kg to 4000 kg depending on model
• Functions: automatic forming, optional printing unit, packing; suitable for single/double-wall cups
• Typical industries: beverage packaging, large-scale cup manufacturers, contract packaging
