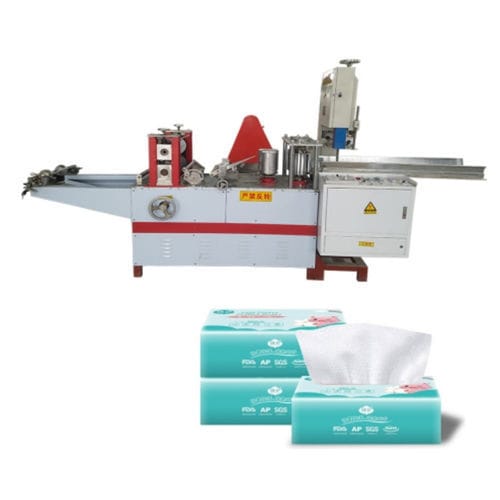

Knife paper folding machine

automatic

Product Overview
This fully automatic tissue napkin making machine converts jumbo paper rolls into stacked paper napkins through a continuous automated process. The equipment is engineered for stable operation, consistent finished dimensions and flexibility to process various raw paper specifications.

Key Product Features

• Jumbo Roll Unwinding: precise tension control system for stable and smooth paper feeding.
• Embossing: high-precision embossing units to improve texture, appearance and water absorption.
• Color Printing: optional multi-color flexographic printing units for custom logos or patterns; printing roll retracts automatically when the machine stops (anilox mechanism).
• Accurate Folding and Cutting: supports fold patterns 1/4, 1/6 and 1/8 with a high-precision band saw cutting system for uniform finished sizes.
• Automatic Counting: electronic counting system ensures accurate number of napkins per stack for packaging.

Deep Product Analysis and Technical Advantages
The machine integrates unwinding, embossing, optional printing, folding, cutting, counting and stacking into a continuous automated line. Design highlights include vibration suppression and a rigid frame to maintain embossing clarity and fold accuracy, PLC/HMI control for process monitoring and adjustments, and modular stations to accommodate different paper widths and diameters.

Core Product Advantages

• Capacity and Efficiency: configured to operate across a wide speed range to match production targets (0 - 800 pcs/min).
• Consistent Finished Quality: engineered components and precise motion control for clear embossing and uniform folds.
• Operator-Friendly Controls: PLC and HMI for straightforward setup, recipe storage and maintenance diagnostics.
• Process Flexibility: compatible with multiple raw roll sizes, embossing options and optional printing modules.

Application Fields

• Hotel, restaurant and catering industry
• Cafés and quick-service food outlets (custom printed napkins with brand logos)
• Home and office paper product manufacturers
• Aviation and transportation onboard service suppliers

Technical Specifications

• Raw Roll Width: 200×200 - 460×460 mm (to be ordered)
• Raw Roll Diameter: ≤ Φ1200 mm
• Paper Core Diameter: Φ76.2 mm
• Folded pattern: 1/4, 1/6, 1/8
• Capacity: 0 - 800 pcs/min
• Production speed: 0 - 150 m/min
• Embossing rollers: steel-to-paper roller or steel-to-steel roller (to be ordered)
• Printing unit: flexographic printing; printing roll withdraws automatically when the machine stops (anilox mechanism)
• Counting system: electric electronic counting system
• Calendering: steel-to-steel or rubber calender (to be ordered)
• Air Compressor: depends on machine model
• Motor Power: depends on machine model
• Heating unit: improves embossing clarity
