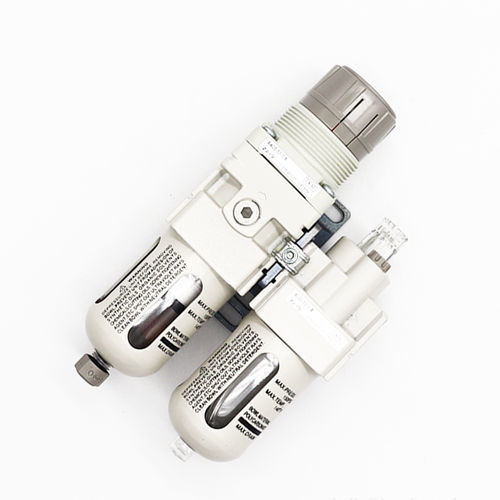

Air filter-regulator-lubricator AC20A-02-C-A
compressed airfor air treatment unitsmetal

Add to favorites

Compare this product

Characteristics

Designed for

air, compressed air

Applications

for air treatment units

Material

metal, plastic

Mounting

thread connection

Fluid specification

lubricating oil

Other characteristics

with drainage and venting conncection, transparent

Operating pressure

Min.: 0.05 MPa

Max.: 0.7 MPa

Product overview

ZJHD air combination filter regulator lubricator AC20A-02-C-A
Easy replacement of the element: element and bowl are one piece; replacement can be done by hand
Energy-saving regulator
Reduced required maintenance space
Better visibility & safer: bowl covered with transparent bowl guard

Description
Description for ZJHD Air Combination Filter Regulator Lubricator AC20A-02-C-A

Configuration

Model: AC — Filter Regulator + Lubricator
Body Size: 20 mm
Thread Type: PT
Port Size: 1/4 (02)
Option a: Without Auto Drain
Option b: Without Pressure Gauge
Attachment: Without Attachment
Semi-Standard a (C): 0.05 to 0.7 MPa setting; metal bowl with level gauge; with bowl guard
Semi-Standard b: With drain cock, relieving type; flow direction: Left to Right; name plate and pressure gauge in imperial units: MPa

Technical specifications

Model: AC
Denomination / SKU: AC20A-02-C-A
Body size: 20 mm
Thread type: PT
Port size: 1/4 (02)
Option a: Without Auto Drain
Option b: Without Pressure Gauge
Attachment: Without Attachment
Semi-Standard a (C): 0.05 to 0.7 MPa setting; metal bowl with level gauge; with bowl guard
Semi-Standard b: With drain cock, relieving type; flow direction: Left to Right; name plate and pressure gauge in imperial units: MPa
Design highlights: easy element replacement (element and bowl in one piece); energy-saving regulator; reduced maintenance space; transparent bowl guard for better visibility and safety
