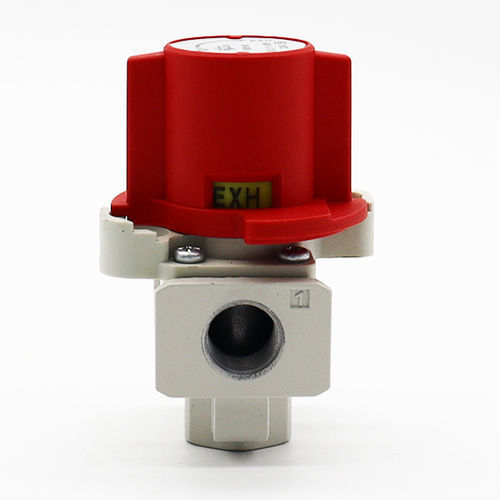

Air pressure relief valve VHS20-02Afor compressed airBSPTfor pneumatic conveying
Add to favorites
Compare this product
Characteristics
- Fluid
- for air, for compressed air
- Connexion
- BSPT
- Applications
- for pneumatic conveying
- Body material
- PBT
- Other characteristics
- manual, 3/2
- DN
20 mm
(0.787 in)
Description
Product overview
Detailed specifications (from product table)
Characteristics / Technical specifications
- VHS20-02A pressure relief 3-port valve with locking holes for padlock (single action)
- Manually operated valve designed to safely release residual pressure in pneumatic lines and prevent accidents
- Clear visual indication of supply and exhaust positions for quick status checks
- Padlockable in exhaust position to secure the circuit during maintenance, cleaning or inspection
- Two-step manual operation: push the handle then turn, reducing risk of accidental operation
Detailed specifications (from product table)
- Body size: 20
- Thread type: Rc
- Port size: 1/4 (designated as 2)
- Handle/bonnet material: A — Flame Resistant PBT
- Option: –
- Semi-standard specifications: –
Characteristics / Technical specifications
- Model: VHS20-02A
- Brand: ZJHD
- Category: Air treatment unit
- Operation: Manual, single action; push then turn (2-step)
- Function: Pressure relief, 3-port valve
- Body size: 20
- Thread type: Rc
- Port size: 1/4 (designated as 2)
- Handle/bonnet material: Flame Resistant PBT (code A)
- Safety: Padlockable in exhaust position to prevent accidental start-ups during maintenance
- Visual indication: Supply and exhaust status can be verified at a glance
