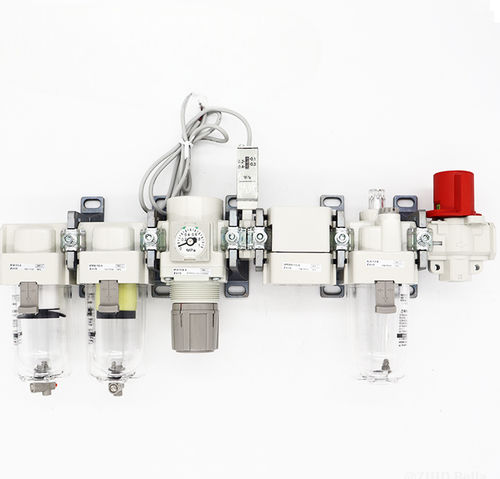

Industrial air treatment unit AC30M-F03EKSV-B

compactmodular

Product Overview

• Modular air treatment unit combining Air Filter (AF), Mist Separator (AFM), Regulator (AR) and Lubricator (AL) for compressed air systems.
• Transparent polycarbonate bowl for improved visibility and environmental resistance.
• Tool-free element replacement: element and bowl in one piece for quick hand replacement.
• Compact design reduces required maintenance space (up to 46% reduction).

Detailed Description
Description for ZJHD AFM30-F03-A + AC30-F03E-KSV-B
The assembly combines filtration, mist separation, pressure regulation and lubrication functions in a compact modular block suitable for industrial compressed air lines. Typical applications include pneumatic equipment supply, control panels and production machinery requiring regulated, dry and lubricated air.

AC series table

• Series: AC
• Body Size: 30 — standard body size for medium-flow applications
• Thread Type: F (G)
• Port Size: 3 (3/8)
• Option a: – — Without Auto Drain (when specified)
• Option b: E — Square embedded type pressure gauge (with limit indicator)
• Attachment: KSV — includes Check Valve, Pressure Switch and 3-Port Valve
• Semi-Standard (default): 0.05 to 0.85 MPa setting; polycarbonate bowl; lubricator without drain cock
• Semi-Standard (alt): With drain cock (relieving type); flow direction left to right; name plate; caution plate for bowl and pressure gauge in imperial units: MPa

AFM series table

• Series: AFM
• Body Size: 30
• Thread Type: F (G)
• Port Size: 3 (3/8)
• Option a: – — Without mounting option (when specified)
• Option b: – — Without auto drain (when specified)
• Semi-Standard: Polycarbonate bowl; optional with drain cock; flow direction left to right; name plate and caution plate for bowl in imperial units: MPa

Additional Images in Description
Product gallery includes multiple views, assembly illustrations and a how-to-order guide to clarify model codes and available options.

Technical specifications

• SKU: AC30M-F03EKSV-B (AFM30-F03-A + AC30-F03EKSV-B)
• Brand: ZJHD
• Category: Air Treatment Unit
• Series/Denomination: AF / AFM / AR / AL Series
• Component composition: Air Filter (AF) + Mist Separator (AFM) + Regulator (AR) + Lubricator (AL)
• Body Size: 30
• Thread Type: F (G)
• Port Size: 3 (3/8)
• Attachment: KSV (Check Valve, Pressure Switch, 3-Port Valve included)
• Option b (AC series): E = Square embedded pressure gauge with limit indicator
• Option a (AC series): Without Auto Drain (when specified)
• Semi-Standard features (AC): 0.05–0.85 MPa setting; polycarbonate bowl; lubricator without drain cock
• Semi-Standard features (AFM): Polycarbonate bowl; optional drain cock; flow left to right; name plate and caution plate in MPa
• Flow direction (when specified): Left to Right
• Material note: Polycarbonate bowl for transparency and visibility
